Electro Hardware 1325M03F21440 Hex Standoff 4-40

Product Description

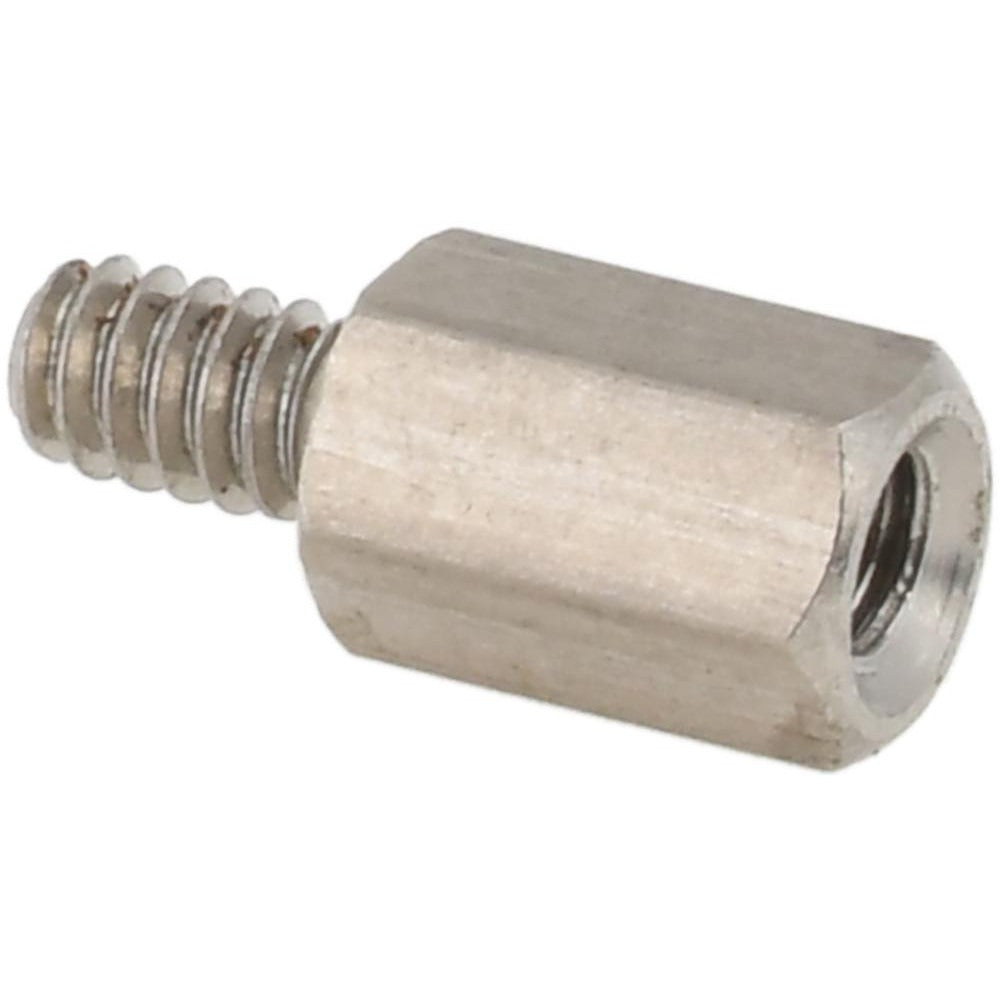

The ELECTRO HARDWARE 1325M03F21440 is a male-female hex circuit board standoff designed to create fixed spacing between stacked PCBs or between a circuit board and a mounting surface. The standoff features a 4-40 thread size with a male thread on one end and a female threaded bore on the other, allowing boards to be fastened and spaced simultaneously. The body is machined from brass and finished with a zinc plating that meets ASTM B633 Type 1 and QQ-B-626 Comp 22 standards. Overall body length is 0.875 inches with a hexagonal cross-section measuring 0.1875 inches across the flats. Electronics assembly technicians and board-level repair technicians install these standoffs in production and field-service applications.

This standoff is used in electronics assembly and circuit board mounting applications across commercial, industrial, and residential control systems. It is well-suited for securing control boards inside HVAC equipment, electrical enclosures, and similar panels where repeatable board-to-surface spacing is required. The hex profile allows tightening with a standard wrench or nut driver. The male thread on one end engages a receiving nut or threaded hole in the mounting surface, while the female threaded bore accepts a screw from the board above. Minimum order quantity is 10 units.

Key Features

• 4-40 male-female thread configuration for stacking and spacing circuit boards
• Brass construction with zinc plating meets ASTM B633 Type 1 and QQ-B-626 Comp 22 standards
• Hexagonal body profile at 0.1875 inches across flats allows wrench or nut driver installation
• Overall body length of 0.875 inches with a thread depth of 0.25 inches on the female end
• Thread length on the male end is 0.1875 inches
• Length tolerance of -0.005 to 0.005 inches for consistent board-level fitment

Compatibility

Designed for use in any application requiring a 4-40 male-female hex standoff with a 0.875-inch body length and 0.1875-inch hex width, including PCB mounting in control panels and electronic enclosures.
