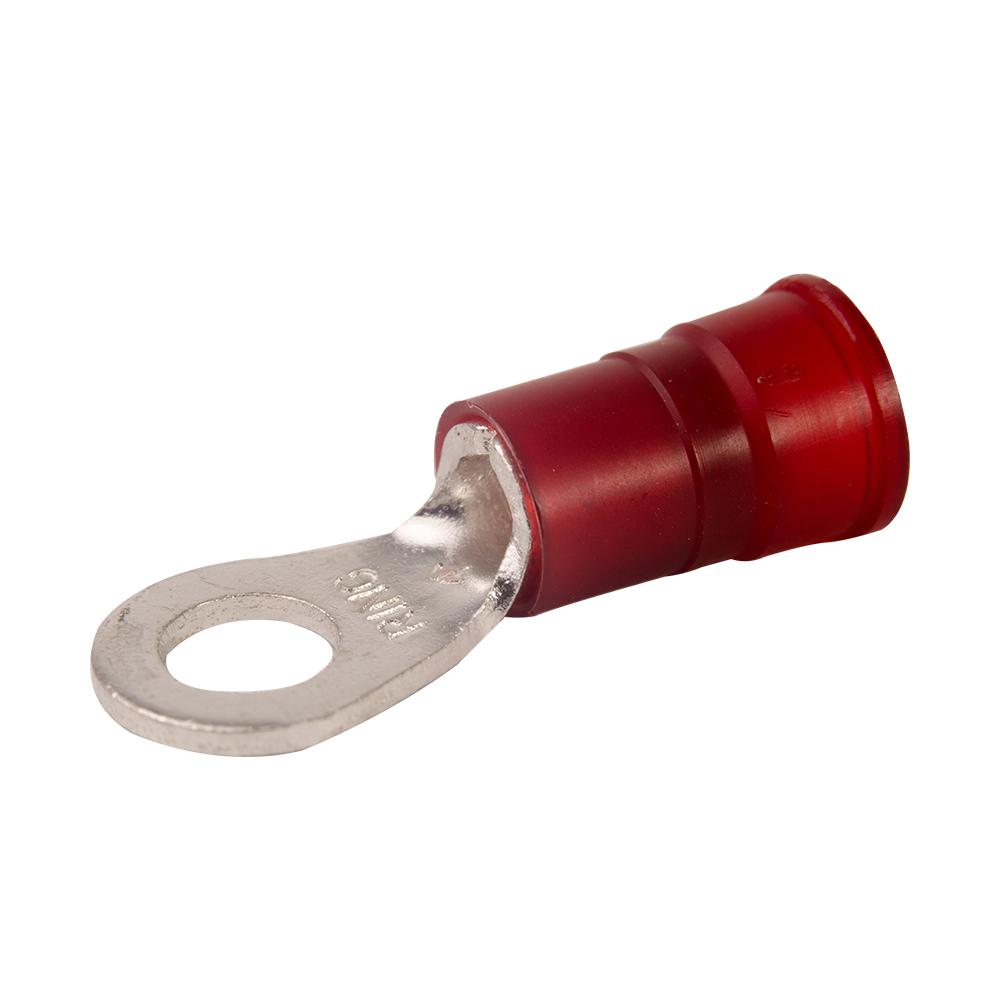

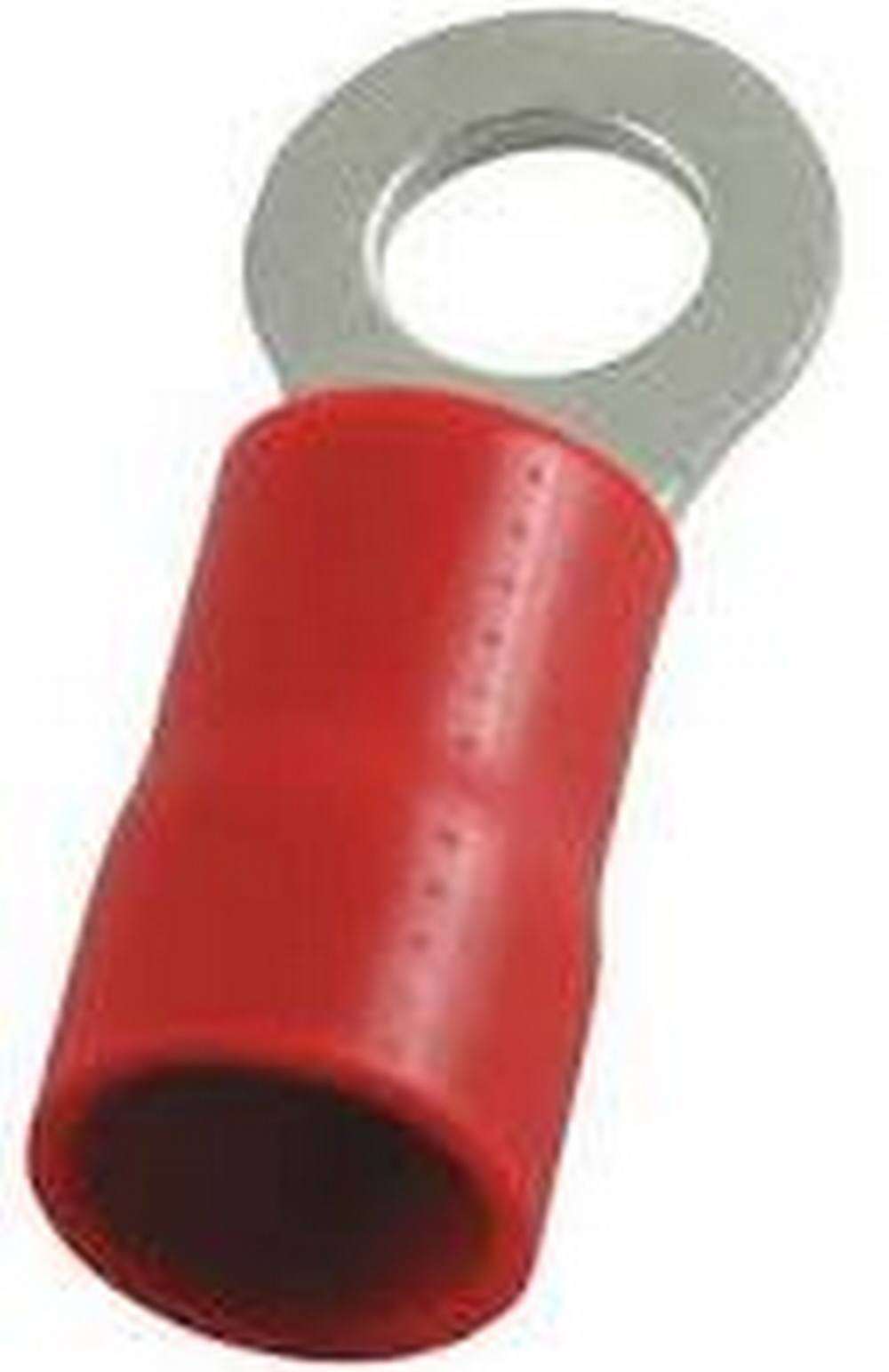

Diversitech 6257NX Insulated Ring Terminal 8 AWG Conductor 1/4 in Stud

Product Description

The Diversitech 6257NX is an insulated ring terminal designed for use with eight American Wire Gauge (AWG) conductors. This component has a one-fourth inch stud size and is made from copper alloy with an Electro-TiN coating. The terminal is built to provide reliable electrical connections while protecting against corrosion.

• Insulated design for safety and reliability
• Electro-TiN coating for corrosion resistance
• Compatible with 8 AWG conductors and 1/4 inch studs

Product Highlights

This terminal is easy to install and provides mechanical strain relief. It helps to eliminate soldering, offering a simplified installation process for electrical professionals.

Product Information

Standard Information

• Brand: Diversitech
• Country of Origin: US

Technical Specifications

• MPN: 6257NX
• Material: Copper Alloy
• Conductor Size: 8 AWG
• Finish: Electro-TiN Coated
• Stud Size: 1/4 in
• Weight: 0.1 lbs
• Package Quantity: 25
• Insulated: Yes
