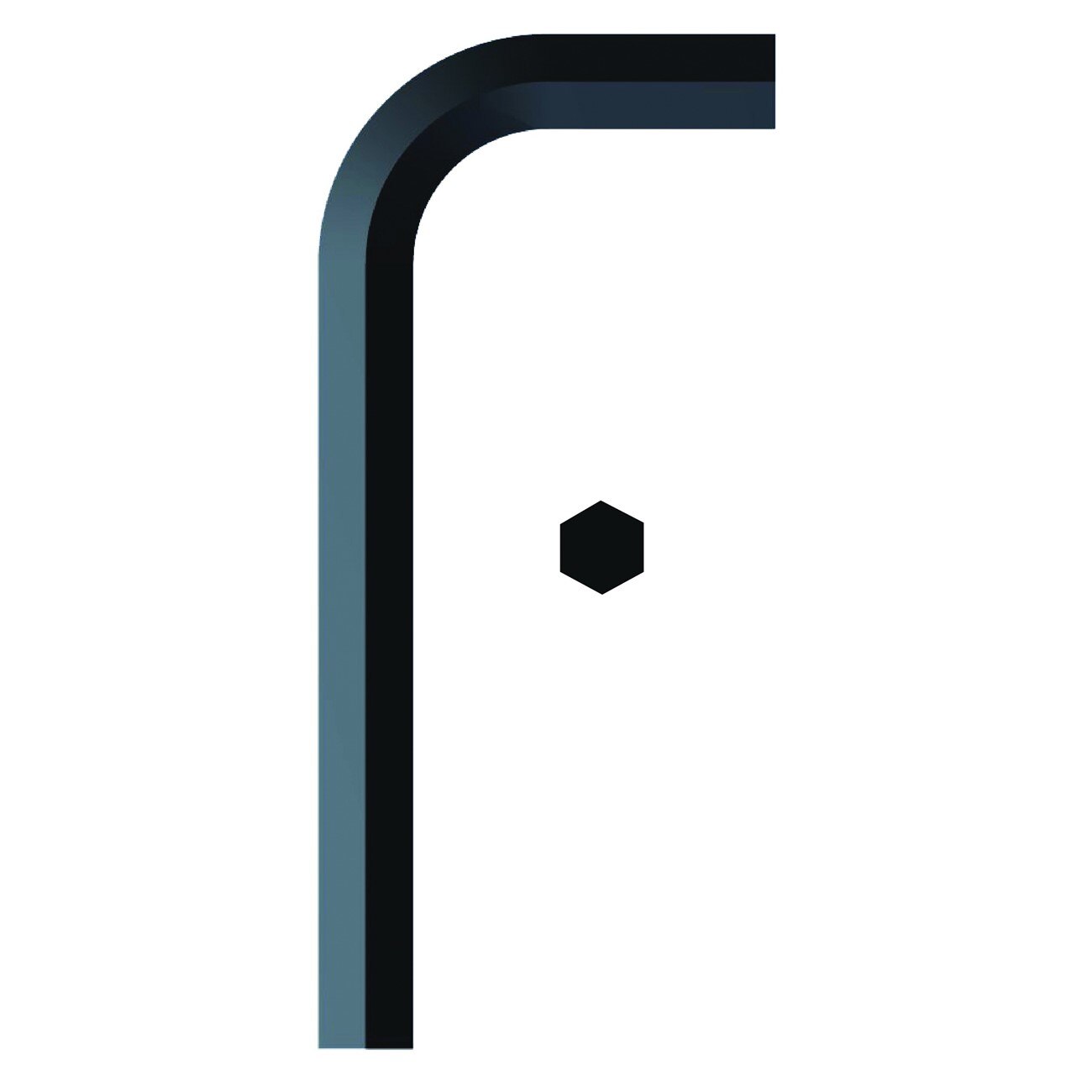

Eklind 15618 Long Arm Hex Key 9 Mm Metric

Product Description

The EKLIND 15618 is a metric L-shaped hex key designed to drive internal hexagon socket fasteners in demanding trade and industrial applications. Built from EKLIND alloy steel that is heat treated, quenched, and tempered, the key delivers high torque capacity while maintaining ductility to resist breakage under load. The black oxide coating provides rust resistance for tools stored in service vans or job-site toolboxes. The long arm measures 6.58 inches and the short arm measures 1.54 inches, giving the technician two engagement options depending on access and torque requirements. Manufactured in the USA and meets ANSI B18.3 standards.

This hex key is suited for HVAC equipment assembly and service, plumbing fixture installation, electrical panel and equipment mounting, and general mechanical work where metric socket-head cap screws or set screws are used. The 9 mm size is common in commercial equipment, pump assemblies, and structural fastener applications. The L-handle design allows either the long arm for reach into deep or recessed fastener locations, or the short arm for high-torque final tightening in confined spaces.

Key Features

• 9 mm metric tip fits standard internal hexagon socket fasteners
• Long arm at 6.58 inches provides extended reach into recessed or obstructed fastener locations
• Short arm at 1.54 inches allows increased torque for final tightening
• Alloy steel construction, heat treated, quenched, and tempered for optimum strength and ductility
• Black oxide finish resists rust and corrosion in field conditions
• Meets ANSI B18.3 specifications
• Made in the USA

Compatibility

Designed for use with 9 mm internal hexagon socket fasteners across residential and commercial HVAC, plumbing, electrical, and general mechanical applications.

Installation Notes

This tool is installed by hand and requires no special certification to use; however, always select the correct key size to avoid rounding the fastener socket. When working on energized electrical equipment or pressurized systems, follow all applicable lockout and shutoff procedures before using any hand tool on fasteners. Do not use extension devices or additional leverage on the short arm, as this can exceed the design torque range of the fastener or the key.

Technical Specifications

• Tip Size: 9 mm
• Measurement System: Metric
• Long Arm Length: 6.58 inches
• Short Arm Length: 1.54 inches
• Working Angle: 35 degrees
• Drive Type: Hex
• Handle Type: L-Handle
• Blade Material: Alloy Steel
• Finish: Black Oxide
• Weight: 1.2 pounds
• Standard Met: ANSI B18.3
• Country of Origin: USA

Standard Information

• Brand: EKLIND
• Manufacturer Part Number: 15618
