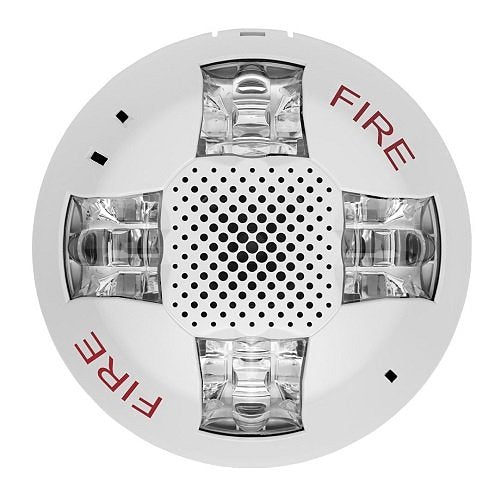

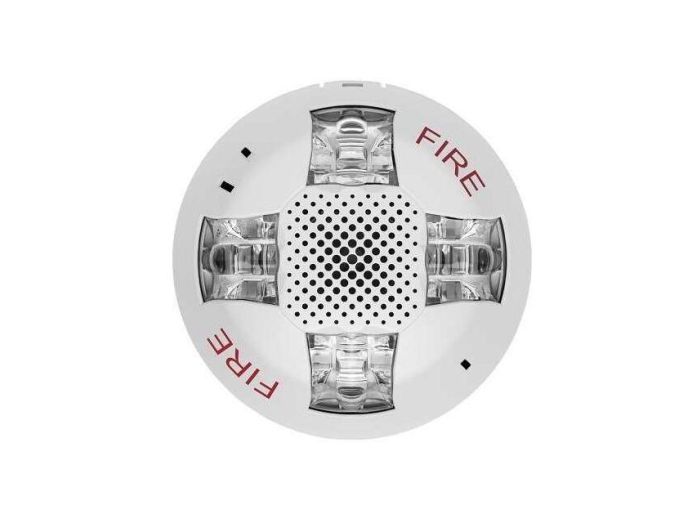

Edwards Signaling EGCSVWF Genesis Ceiling Speaker Strobe 15-115 cd (Ceiling Mount) ED-EGCSVWF

Product Description

Edwards Signaling EGCSVWF is a Genesis ceiling-mounted speaker-strobe combining audible and visual notification for fire alarm systems. The unit features field-selectable light output (15, 30, 75, or 115 cd) and selectable speaker line operation for 25V or 70V systems with field-configurable wattage taps. It maintains constant current draw of 35 mA (VDC) and 45 mA (VFWR), meets NFPA and UL 520 Hz requirements for sleeping areas, and has an STI of 0.81. A room-side wiring plate is included.

• Field-selectable strobe output: 15, 30, 75, or 115 candela; constant current draw 35 mA (VDC), 45 mA (VFWR)
• Speaker supports 25V or 70V operation with field-selectable wattage taps and STI rating 0.81
• Ceiling mount form factor, wired connectivity, room-side wiring plate included

Product Highlights

Combined ceiling speaker-strobe with field-selectable 15–115 cd output, selectable 25V/70V speaker operation, constant current draw 35 mA (VDC) / 45 mA (VFWR), STI 0.81

Product Information

Standard Information

• Brand: EDWARDS SIGNALING
• Manufacturer Part Number: EGCSVWF
• Country of Origin: China
