Edwards Signaling 51XBRFR24D Flashing Led Warning Light

Product Description

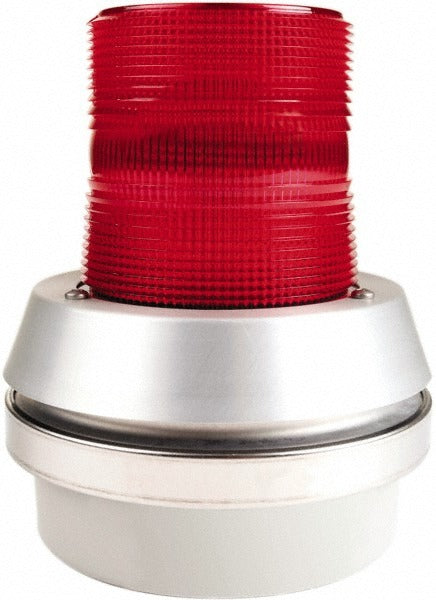

The EDWARDS SIGNALING 51XBRFR24D is a red flashing LED warning light designed for visual alarm and signaling applications in both indoor and outdoor environments. Running on 24 volts DC and drawing 0.28 amps, this unit delivers 65 flashes per minute through an impact-resistant, shatter-resistant, vibration-resistant red lens. The housing measures 6 inches in diameter and 7.38 inches in height, offering a visible warning signal suitable for industrial, commercial, and life-safety signaling systems. It is typically installed by licensed electricians or fire alarm technicians as part of a supervised notification circuit.

This flashing light is suited for use in commercial buildings, industrial facilities, and any application requiring a durable, weather-rated visual notification device. Its versatile mounting options include box, panel, pipe, surface, and wall configurations, accommodating 1/2-inch pipe or pendant mounts. The operating temperature range of -31 degrees F to 150.80 degrees F makes it appropriate for demanding environments such as warehouses, manufacturing floors, parking structures, and exterior building applications where reliable visual signaling is required.

Key Features

• LED lamp type delivers consistent flash output at 65 flashes per minute
• Red lens is impact-resistant, shatter-resistant, and vibration-resistant
• Operates on 24 volts DC at 0.28 amps for compatibility with standard notification circuits
• Rated for indoor and outdoor use across a wide temperature range (-31 degrees F to 150.80 degrees F)
• Multiple mounting configurations: box, panel, pipe, surface, and wall
• cULus Listed and UL Listed for use in code-compliant installations

Compatibility

Designed as an OEM-style replacement or new-installation visual notification device for 24 VDC signaling and alarm circuits in residential, commercial, and industrial applications.

Installation Notes

Installation should be performed by a qualified electrician or licensed fire alarm technician in accordance with NFPA 72 and applicable local codes. De-energize the notification circuit and verify zero voltage before wiring. Confirm the mounting surface or conduit connection is secure before applying power. For pipe mounting, use the 1/2-inch pipe fitting and ensure the fixture is properly sealed if installed in a wet or outdoor location.
