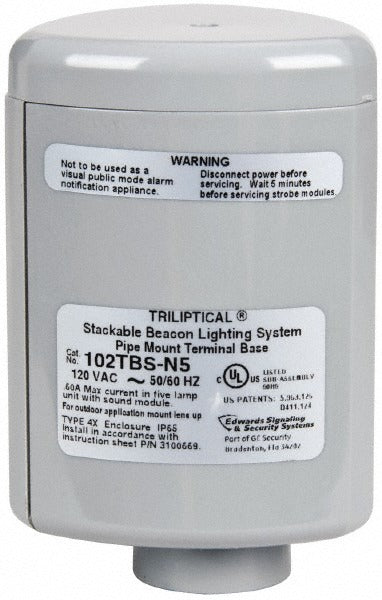

Edwards Signaling 102TBS-N5 Tower Light Base Unit

Product Description

The EDWARDS SIGNALING 102TBS-N5 is a stackable tower light base unit designed for industrial and commercial signaling applications. This base unit serves as the foundation for modular tower light assemblies, accepting additional light and sound modules stacked on top to build a customized annunciator column. It operates at 120 VAC and draws 0.60 amps. The unit supports both flashing and steady light output modes, giving installers flexibility in how alert conditions are communicated. It carries an IP54 and IP65 ingress protection rating along with NEMA 3R and 4X ratings, making it suitable for demanding environments including wet, dusty, and corrosive locations. Installation is via pipe mount.

This base unit is suited for use in manufacturing facilities, machine control panels, process lines, and other industrial or commercial settings where visual status indicators are required. The modular stackable design allows electrical contractors and automation technicians to configure multi-color, multi-function signal towers to match specific alarm or status annunciation requirements. Its dual ingress ratings make it appropriate for both indoor and outdoor installations where environmental exposure is a concern.

Key Features

• Supports flashing and steady light output modes for flexible signaling
• Stackable modular design accepts additional light and sound modules
• IP54 and IP65 ingress protection ratings for wet and dusty environments
• NEMA 3R and 4X rated for outdoor and corrosive location use
• Pipe mount installation for standard industrial signal tower mounting
• Operates at 120 VAC at 0.60 amps

Compatibility

Designed as an OEM-style base unit for use with compatible EDWARDS SIGNALING stackable tower light module assemblies. No specific compatible model numbers were provided in the available product data.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NFPA 70 (NEC) requirements. Disconnect and lock out all power to the circuit before mounting or wiring the unit. Secure the base to a standard pipe mount and verify all module connections are fully seated before restoring power. Confirm the installation environment matches the applicable NEMA and IP ratings before final commissioning.
