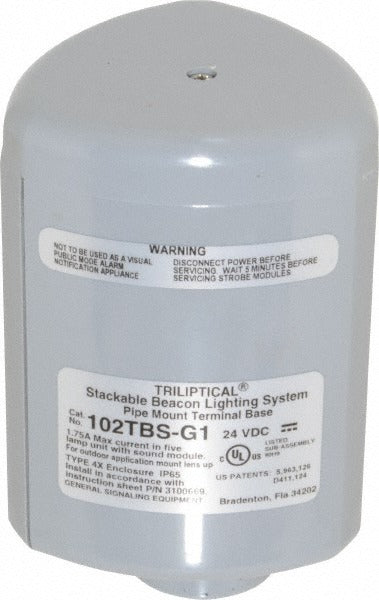

Edwards Signaling 102TBS-G1 Tower Light Base Unit 24V

Product Description

The EDWARDS SIGNALING 102TBS-G1 is a stackable tower light base unit designed for industrial and commercial signaling applications. Operating at 24 volts DC and rated at 1.75 amps, this base unit supports both flashing and steady light output modes. It is pipe-mounted and built to withstand demanding environments, carrying IP54 and IP65 ingress protection ratings along with NEMA 3R and 4X enclosure ratings. Electricians and automation technicians install this unit as the foundation of a modular tower light assembly, adding signal modules on top to create a customized visual alert stack suited to the application.

The 102TBS-G1 base unit is intended for use in industrial facilities, manufacturing floors, warehouses, and other commercial environments where visual signaling is required. Its dual ingress protection ratings make it suitable for both indoor and outdoor installations where dust, water spray, or corrosive conditions may be present. As a stackable base, it accepts compatible signal modules to build a multi-tier tower light system tailored to specific alarm or status-indication needs.

Key Features

• Supports flashing and steady light output modes for flexible signaling configurations
• 24 VDC operating voltage at 1.75 amps
• IP54 and IP65 ingress protection ratings for dust and moisture resistance
• NEMA 3R and 4X ratings for indoor and outdoor use in corrosive or wet environments
• Pipe mount design for straightforward installation on standard signal towers
• Stackable modular design allows additional light modules to be added above the base unit

Compatibility

Designed as an OEM-style base unit for modular stackable tower light systems requiring a 24 VDC pipe-mount foundation with NEMA 4X and IP65-rated construction.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC guidelines. Disconnect and lock out all power to the circuit before mounting or wiring the base unit. Ensure the pipe mount is secure and correctly sized before stacking additional signal modules. Do not exceed the rated amperage of 1.75 amps when configuring the tower light assembly.
