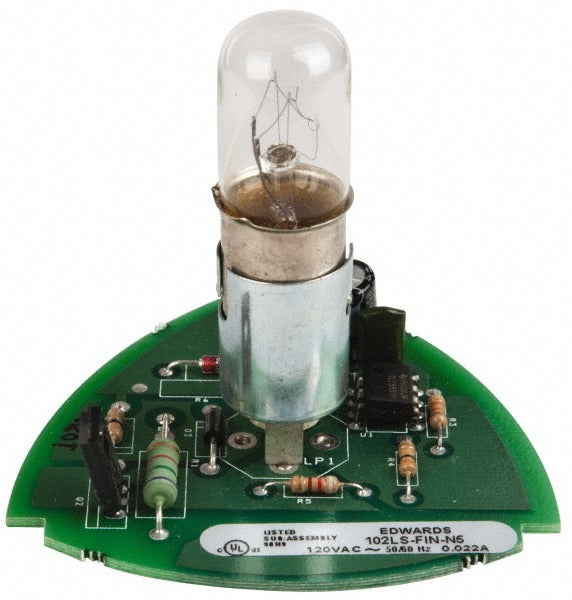

Edwards Signaling 102LS-FIN-N5 Tower Light Module

Product Description

The EDWARDS SIGNALING 102LS-FIN-N5 is a stackable incandescent tower light module designed for industrial and commercial signaling applications. This module emits a clear, flashing light signal at 120 VAC and draws 0.08 amps, making it a low-current indicator element for machine status, process alarms, and facility warning systems. It carries an IP54 and IP65 ingress protection rating along with NEMA 3R and 4X ratings, confirming suitability for both indoor and outdoor environments where moisture, dust, and corrosive conditions are a concern. Licensed electricians and industrial automation technicians are the primary installers of this type of signaling hardware.

This module is designed for use in stackable tower light assemblies, commonly mounted on production equipment, control panels, and automated machinery in manufacturing, warehouse, and process-control settings. The panel mount and pipe mount configurations allow integration into a wide range of enclosures and stand-alone mounting posts. Its flashing clear lens makes it well suited for alerting personnel to active fault conditions, standby states, or process transitions where a pulsing visual cue is required to differentiate from steady-state indicators.

Key Features

• Stackable modular design allows combination with other tower light modules for multi-status signaling
• Clear flashing lens provides a distinct visual alert for fault or attention states
• Rated IP54 and IP65 for resistance to dust ingress and water spray
• NEMA 3R and 4X ratings support outdoor and corrosive-environment installations
• Supports panel mount and pipe mount configurations for installation flexibility
• Low 0.08-amp draw at 120 VAC reduces load on control panel circuitry

Compatibility

Designed as an OEM-style stackable module for use in modular tower light assemblies requiring 120 VAC incandescent clear flashing indicator elements with NEMA 3R and 4X ratings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all power to the control panel or equipment before mounting or wiring the module. Secure the module to its tower light base or stack assembly per the mounting hardware provided, verifying that the ingress-protection seal is intact before restoring power. Do not exceed the rated voltage or bypass the flashing mechanism circuitry.
