Edwards 44 Rolling Ball Contac

Product Description

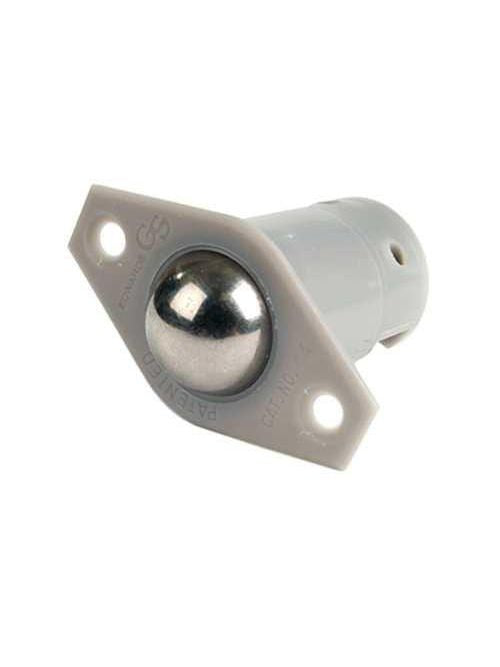

The EDWARDS 44 rolling ball contact is an insulated device that operates from pressure in any direction. This push to open contactor has a voltage rating of 12 to 48 VDC and an amperage rating of 2 to 0.5. It is suitable for door, window, transom, burglar alarm, and machinery applications.

• Fast installation
• Installation requires no mortise
• Low voltage

Product Highlights

The EDWARDS 44 rolling ball contact is easy to install and requires no mortise. It is a low voltage, insulated device suitable for a variety of applications.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 44
• Country of Origin: CHN

Technical Specifications

• MPN: 44
• Reference ID: EDWARDS44
• Brand: EDWARDS
• Switch Type: Rolling Ball Contact
• Voltage Rating: 12 to 48 VDC
• Contact Rating: 2 Amp at 12 Volt AC/DC, 2 Amp at 24 Volt AC, 1 Amp at 24 Volt DC, 1 Amp at 48 Volt AC, 0.5 Amp at 48 Volt DC
• Contact Configuration: 1NC
• Size: 13/16 Inch Diameter x 1-1/8 Inch Depth (Hole)
• Application: Door, Window, Transom, Burglar Alarm, Machinery
• Action: Push to Open
• Amperage Rating: 2 to 0.5 A
• Special Features: 2 A DC current at 12 VDC, 1 A DC current at 24 VDC, 0.5 A DC current at 48 VDC, 2 A AC current at 12 VDC, 2 A AC current at 24 VDC and 1 A AC current at 48 VDC current rating Fast installation Installation requires no mortise Insulated Low voltage The 44 rolling ball switches are insulated, rugged devices that operate from pressure in any direction
• Sub_Brand: Edwards
• Type: Push to Open
• Mounting Type: Flush
• Specifications: 13/16 in Dia x 1-1/8 in Depth Hole
• Condition: New
• Standards/Compliance: Low Voltage
• Switch Action: Maintained
• Category: Business & Industrial > Electrical Equipment & Supplies > Switches > Switch Accessories
