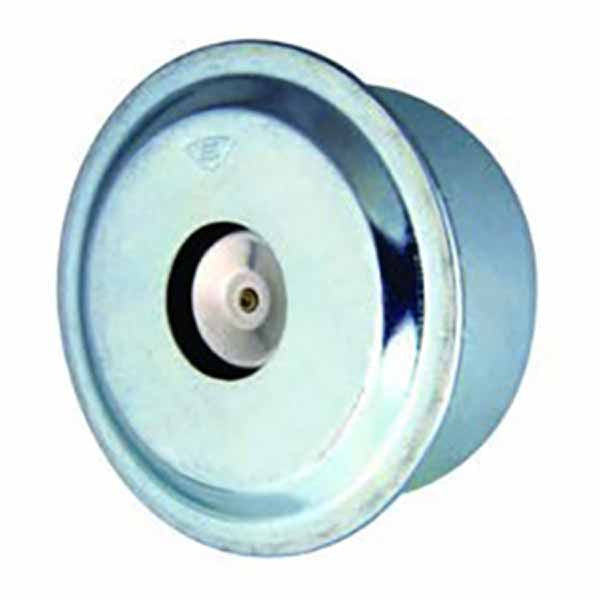

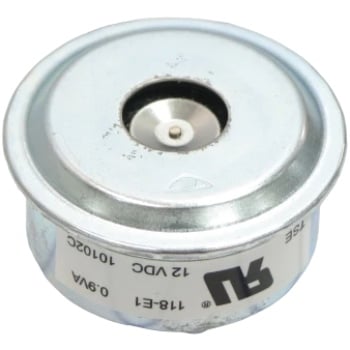

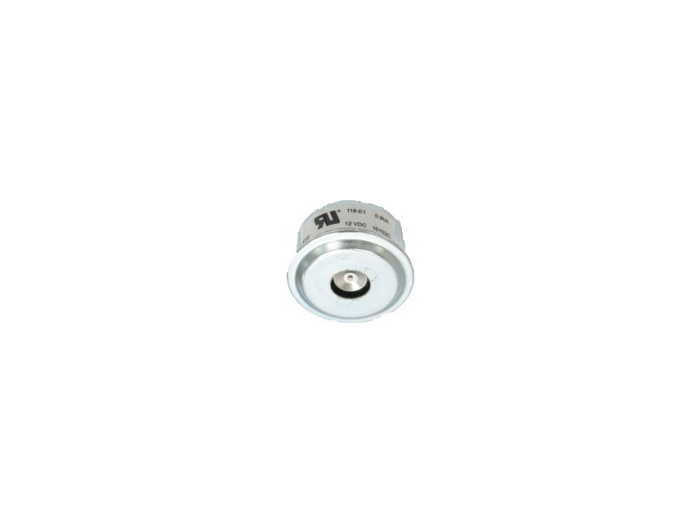

Edwards 118-E1 Midi Vibrating Horn 12VDC

Product Description

The EDWARDS 118-E1 is a midi vibrating horn designed for security systems and signaling devices. This 12VDC horn features low power drain and is shock resistant. It is supplied with a mounting bracket for easy surface mount installation. Ideal for OEM applications.

• Low power drain
• Compact size
• Shock resistant

Product Highlights

The EDWARDS 118-E1 midi vibrating horn is designed for security systems and OEM applications.

Product Information

Standard Information

• Brand: EDWARDS
• Manufacturer Part Number: 118-E1
• Country of Origin: TW

Technical Specifications

• Manufacturer Part Number: 118-E1
• Manufacturer: Edwards Signaling
• Family Series: Edwards Signaling Audible Signaling Devices
• Description: Midi Vibrating Horn, 12VDC
• Type: Vibration
• Voltage: 12 VDC
• Nominal Voltage: 12 VDC
• Current Rating: 0.07 A
• Explosion Proof: No
• Hazardous Location: No
• Operating Temperature: -40-180 °F
• Current: 0.07 AMPERE
• Power Rating: 0.84 VA
• Sound Intensity at 1 ft: 104 DB
• Sound Intensity at 10 ft: 86 DB
• Mounting: SURFACE
• Operating Voltage: 12 V DC
• Product Type: Audible Signals
• Product Family: 101 Series
• Product Category: Safety Equipment
• CUSTOM_Product Type2: Horns
• Brand: Edwards Signaling
• Condition: New
• Production Status: Active
• UNSPSC Code: 32120000
• Decibel Range: 86/96 dB
• Decibels at 1 Meter: 96 dB
• Series: 118 Series
• Supply Voltage: 12 VDC
