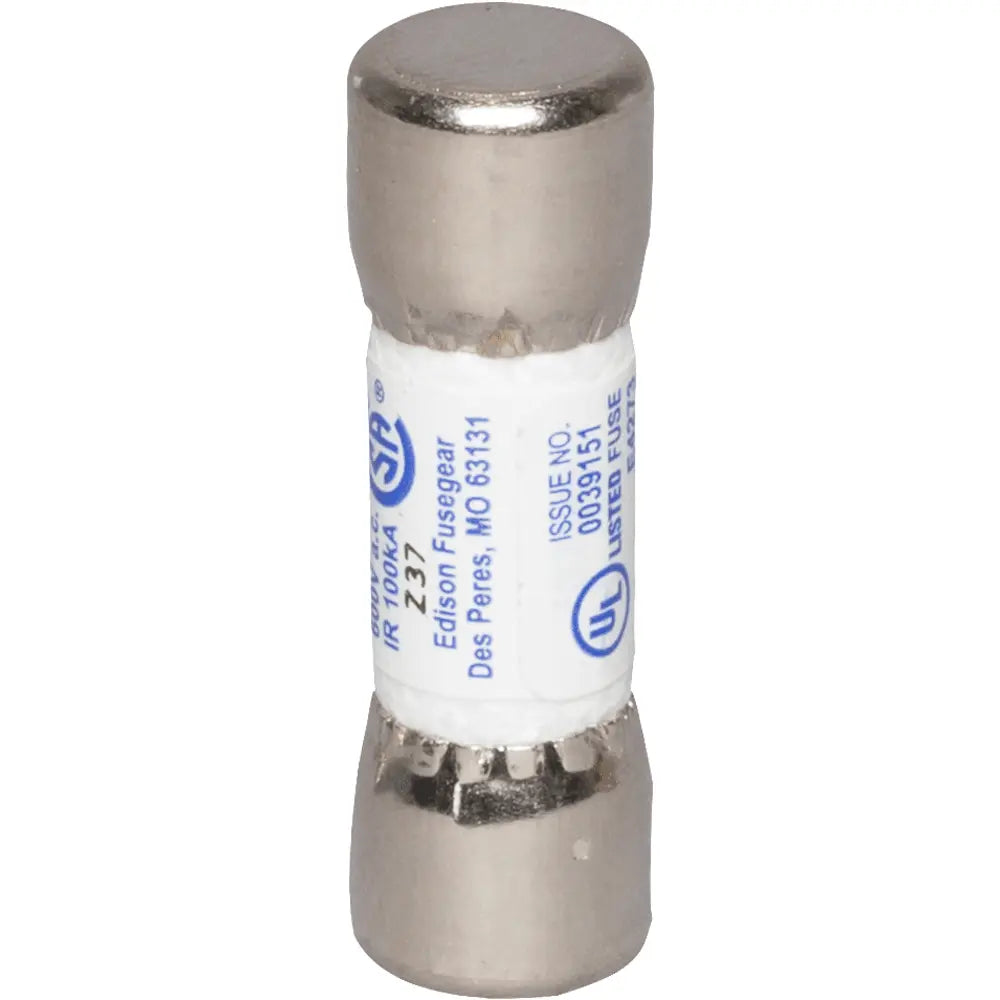

Edison SEC5 5A SEC Time-Lag Class G Fuse, 600 VAC, 170 VDC

Product Description

The Edison SEC5 is a time-lag Class G fuse, rated for five amperes with voltage capabilities of six hundred volts AC and one hundred seventy volts DC. Designed for general use in electrical circuits, this fuse is ideal for protecting fluorescent fixtures and handling light inductive loads such as motors and solenoids.

• Rated for 600 VAC and 170 VDC
• Fast-acting fuse with time-delay characteristics
• Suitable for both industrial and residential applications

Product Highlights

This fuse provides reliable circuit protection in 120/208 and 277/480 voltage systems.

Product Information

Standard Information

• Brand: Edison
• MPN: SEC5

Technical Specifications

• Type: Class G - Time-Delay
• Amperage Rating: 5 Amperes
• Voltage Rating: 600 VAC, 170 VDC
• Response Time: Fast-Acting
• Diameter: 0.41 Inches
• Length: 1.31 Inches
• Weight: 0.02 Pounds
• Short Circuit Rating: 100 kAIC
• Connection: Ferrule End
• Country of Origin: MX
• Standard: CSA, UL
• Type of Indicators: Non-Indicating
