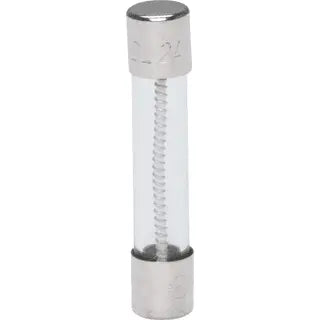

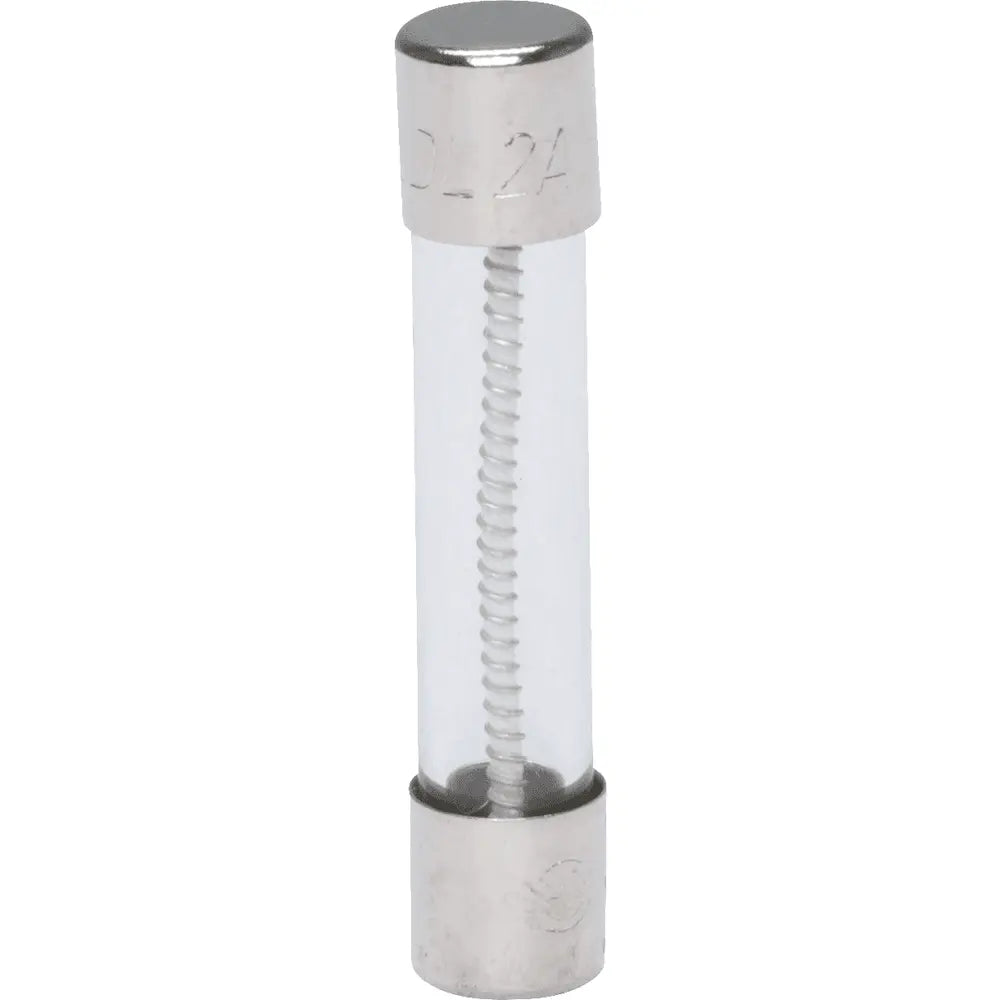

Edison MDL-2-R FUSE TD NON-INDICATING NON-REJECTION 2A

Product Description

The Edison MDL-2-R is a time delay fuse designed for effective overload protection in electrical systems. This fuse offers a non-indicating and non-rejection feature while handling a current of two amperes. It operates at a voltage rating of two hundred fifty VAC and provides an interrupt rating of one hundred amperes at ten kiloamperes. The cylinder body of the fuse has dimensions of one quarter inch diameter by one and one quarter inch length, making it suitable for various applications.

• Time delay allows close sizing on inductive circuits
• Interrupt rating: 100 A at 250 VAC
• 60 min maximum at 135%, 5 sec minimum at 200% response time

Product Highlights

The MDL-2-R fuse ensures reliable circuit protection and is ideal for use in time-sensitive applications where precise amplifier control is necessary.

Product Information

Standard Information

• Series: MDL
• Type: Non-Indicating, Non-Rejection

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 2 A
• Interrupt Rating: 100 A/10 kA
• Body Size: 1/4 in Dia x 1-1/4 in L
• Material: Glass
• Response Time: 60 min, 120 s, 5 s
• Mounting Type: Holder
• Terminal Type: Ferrule
