Edison MDA-20-R Time Delay Fuse, 20A, 250VAC/125VDC

Product Description

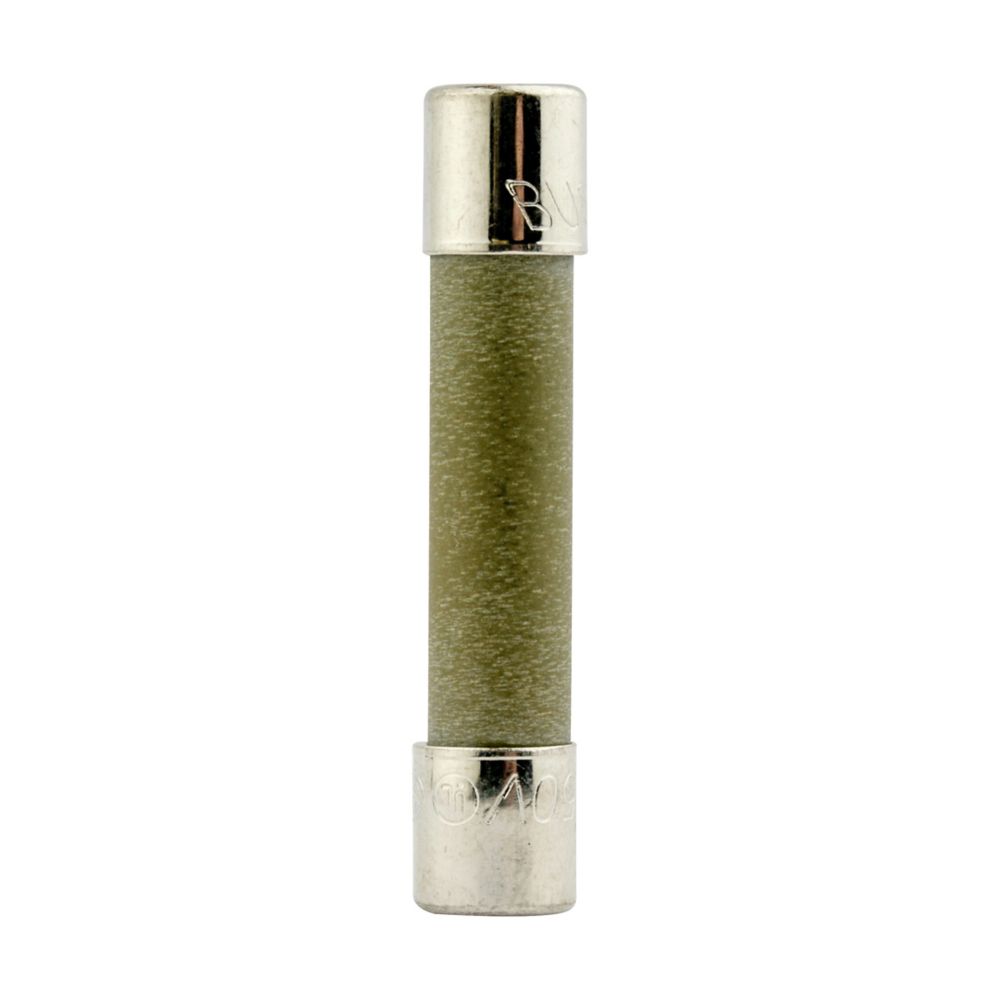

The Edison MDA-20-R is a time-delay fuse designed for overcurrent and overvoltage protection. This fuse is part of the MDA series and features a cylindrical ceramic body with ferrule terminals. It is suitable for holder mounting and is rated for both 250VAC and 125VDC applications.

• Rated amperage of 20A
• Interrupt rating of 1.5kA at 250VAC and 10kA at 125VAC/VDC
• Response time of 60 minutes at 135% and 120 seconds at 200%

Product Highlights

This fuse provides critical protection in various electrical applications. Its small size allows for flexible installation without compromising safety.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Eaton

Technical Specifications

• MPN: MDA-20-R
• Amperage Rating: 20A
• Voltage Rating: 250VAC / 125VDC
• Interrupt Rating: 1.5kA at 250VAC, 10kA at 125VAC/VDC
• Body Type: Cylindrical
• Body Size: 1/4 in Dia x 1-1/4 in L
• Material: Ceramic
• Element: Single
• Terminal Type: Ferrule
• Mounting Type: Holder
• Response Time: 60 min at 135%, 120 sec at 200%
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Non-Rejection
• Type: Time-delay fuse
• Standard: RoHS Compliant, CE Marked
