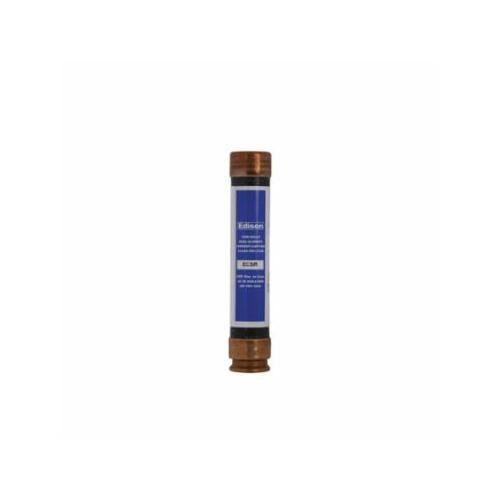

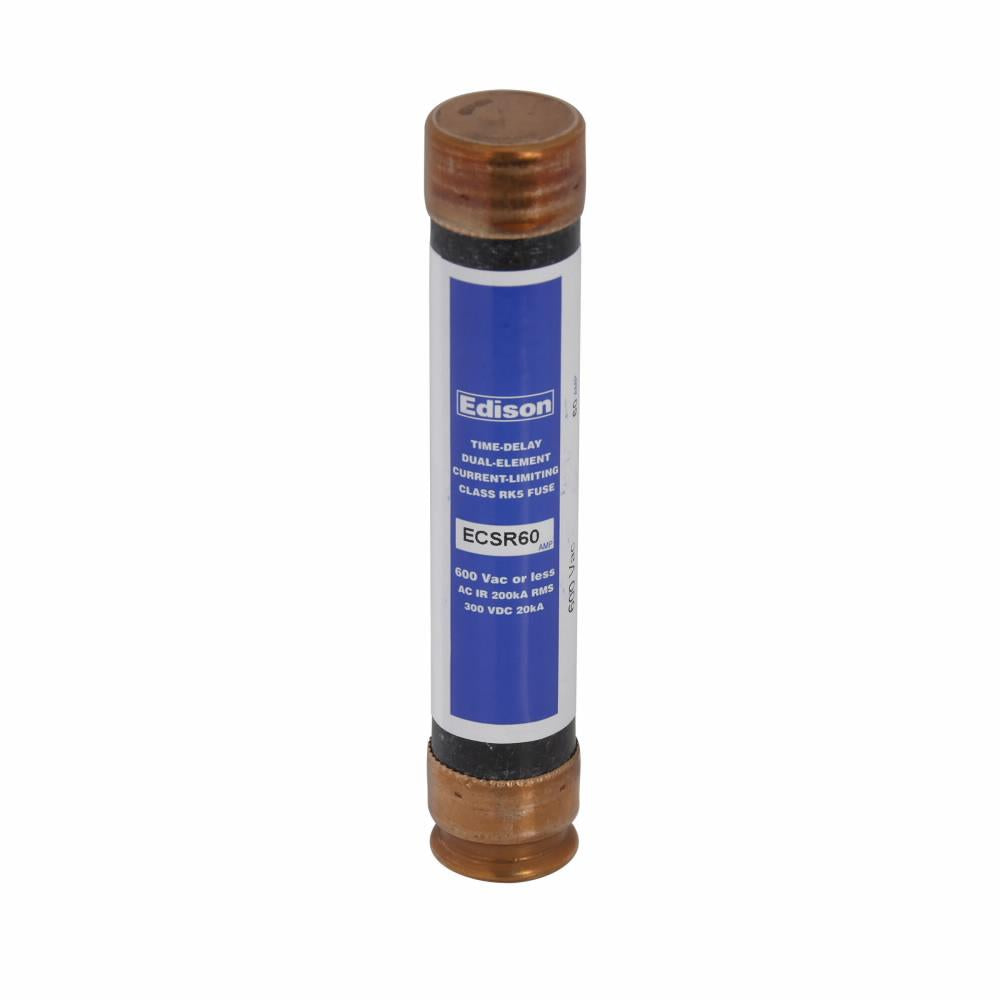

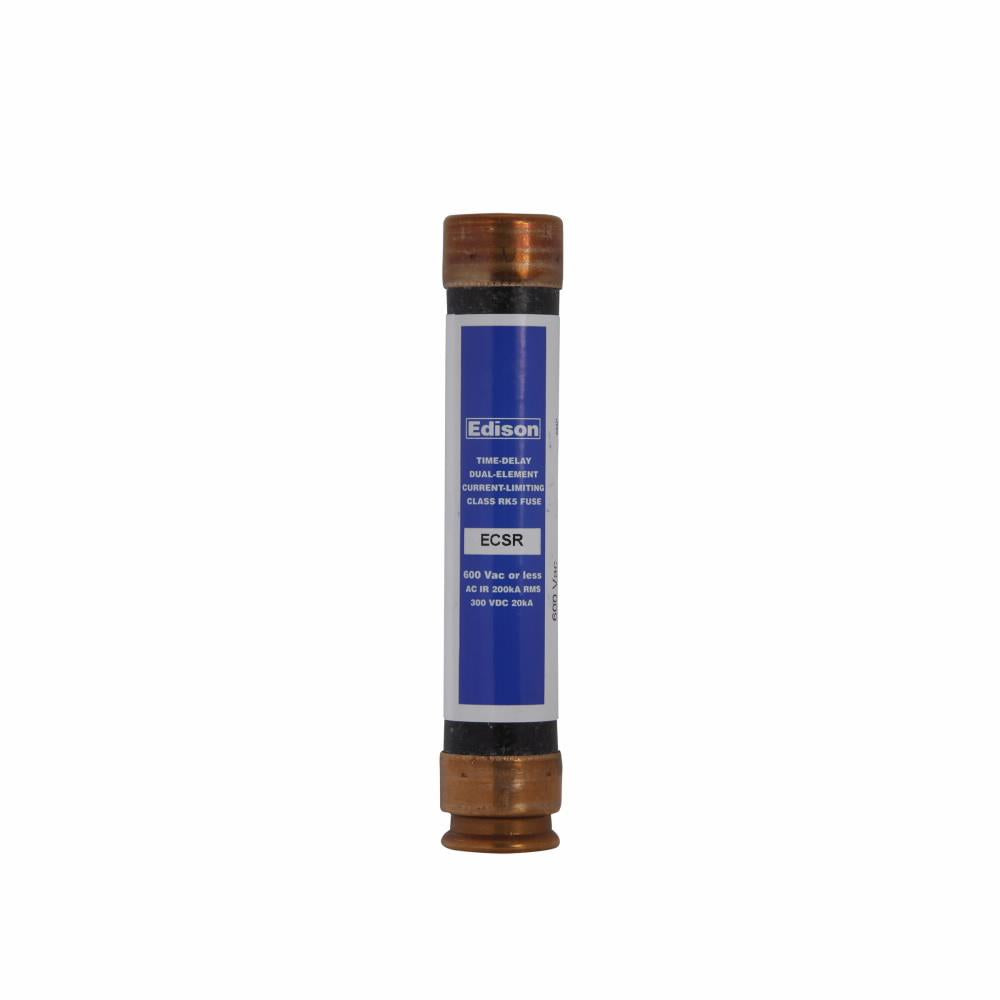

Edison ECSR60 Current Limiting Time Delay Fuse 60 A 600 V

Product Description

The Edison ECSR60 is a current limiting time delay fuse designed for effective overcurrent protection. It has an amperage rating of sixty amps and can operate at six hundred volts, making it suitable for various electrical applications. The fuse features a dual-element design that helps in managing overload situations efficiently.

• Meets UL Class RK5 standards for reliability.
• Available in multiple voltage ratings up to six hundred volts.
• Provides exceptional performance in both inductive and non-inductive loads.

Product Highlights

This fuse is designed to handle temporary overloads and surge currents, providing comprehensive protection across different electrical systems.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Eaton

Technical Specifications

• Body Size: 1.06 in diameter x 5.5 in length
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Material: Fiberglass
• Mounting Type: Holder
• Rejection/Non-Rejection: Rejection
• Response Time: 10 seconds at 500%
• Series: ECSR
• Terminal Type: Ferrule End
• Type: Current Limiting Time Delay
• Amperage Rating: 60 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Class: RK5
• Body Type: Cartridge
