Edison ECSR45 BUSS ECSR45 UL CLASS RK-5 TIME DELA

Product Description

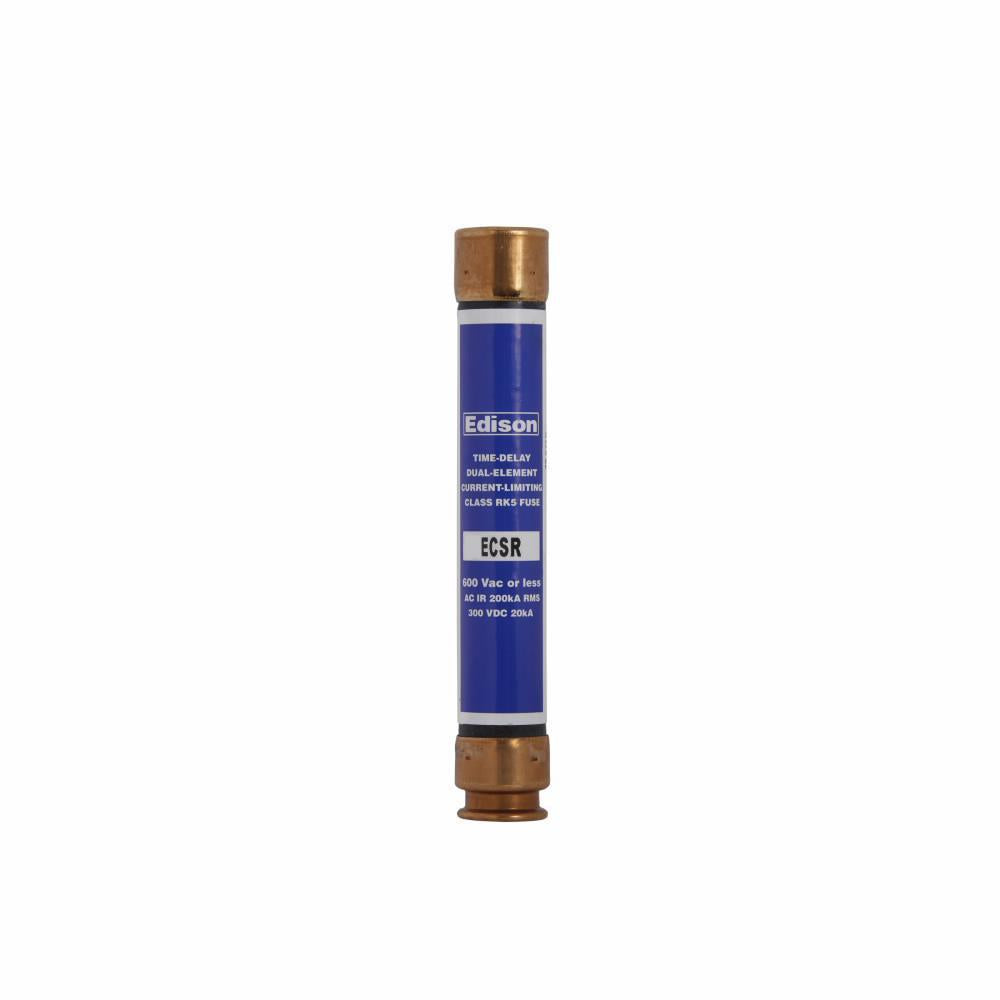

The Edison ECSR45 fuse is a time-delay, current-limiting fuse designed for effective overload protection. It is rated for forty-five amps and operates in standard voltage conditions up to six hundred volts. This fuse features ferrule ends for easy installation and can handle high fault currents, providing reliable protection in various applications.

• Rated for 45 Amps with a 600V voltage capability
• Current limiting and time-delay design for advanced safety
• Ferrule end connection type for easy installation

Product Highlights

Designed for power distribution systems, the Edison ECSR45 fuse effectively protects motors and transformers from overloads and short circuits.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Edison Fuse

Technical Specifications

• Type: Current Limiting, Time-Delay
• Class: RK5
• Interrupt Rating: 200 kAIC
• Response Time: 10 seconds at 500%
• Diameter: 1.06 inches
• Length: 13.38 inches
• Height: 2.88 inches
• Weight: 3.6 lb
