Edison ECSR40 BUSS ECSR40 UL Class RK-5 Time Delay Fuse 40A - ECSR40

Product Description

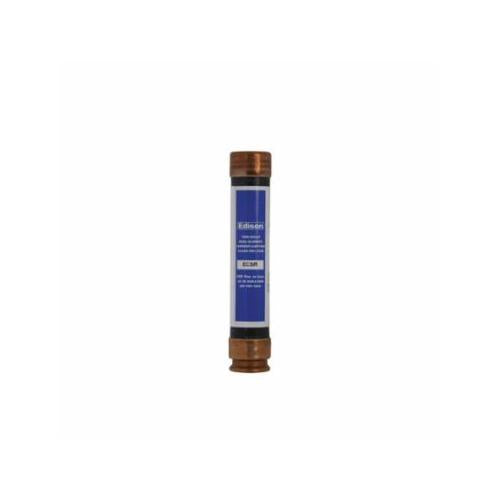

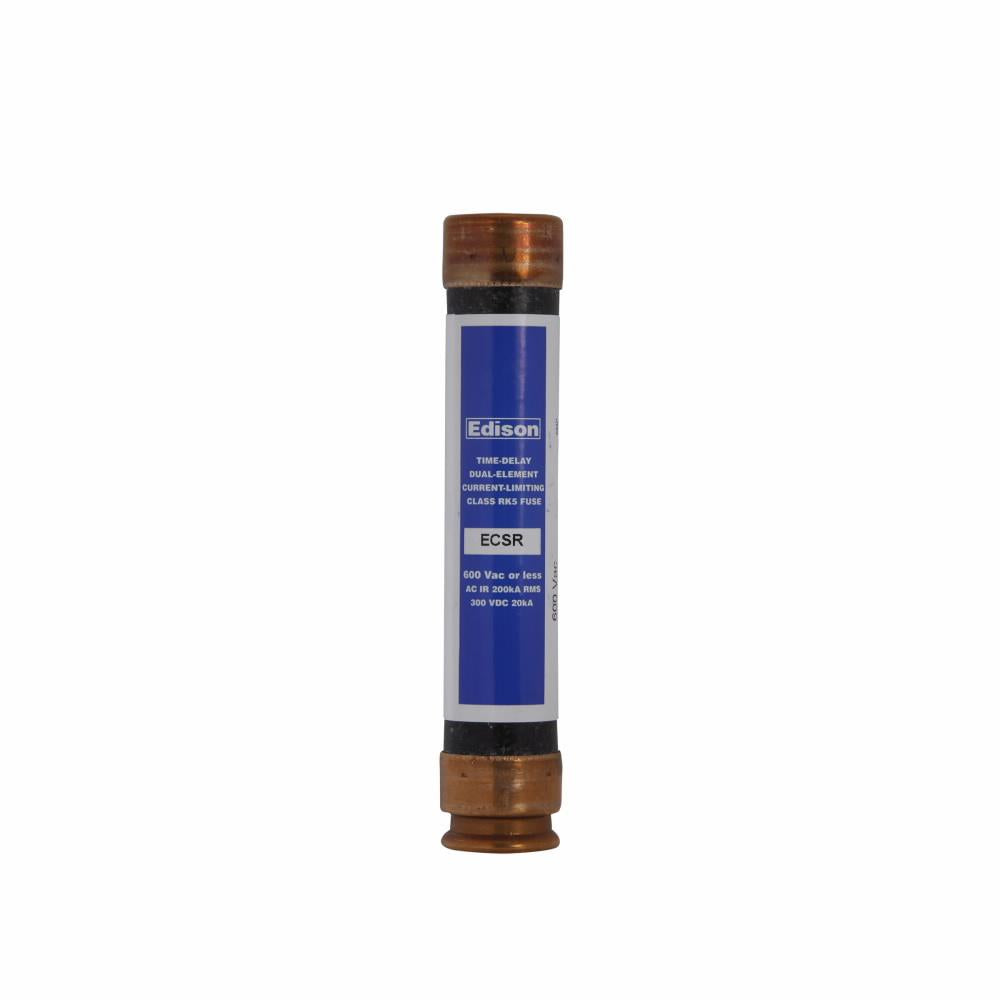

The Edison ECSR40 fuse is a time-delay current-limiting fuse designed for overcurrent protection. It is ideal for applications involving motors, transformers, and other inductive loads. This fuse is rated for forty amps and operates at six hundred volts, making it suitable for various electrical systems.

• Time-delay feature allows for closer sizing to running ampacity
• High interrupt rating of 200 kAIC
• Ferrule end terminals for secure connections

Product Highlights

This fuse provides reliable overload protection and helps prevent unnecessary openings due to surge currents.

Product Information

Standard Information

• Brand: Edison
• MPN: ECSR40

Technical Specifications

• Element: Dual
• Voltage Rating: 600 Volt
• Amperage Rating: 40 Amp
• Body Size: 1.06 inches in diameter x 5.5 inches in length
• Type: Current limiting, Time-delay
• Interrupt Rating: 200 kAIC
• End Type: Ferrule
• Response Time: 10 seconds at 500%
