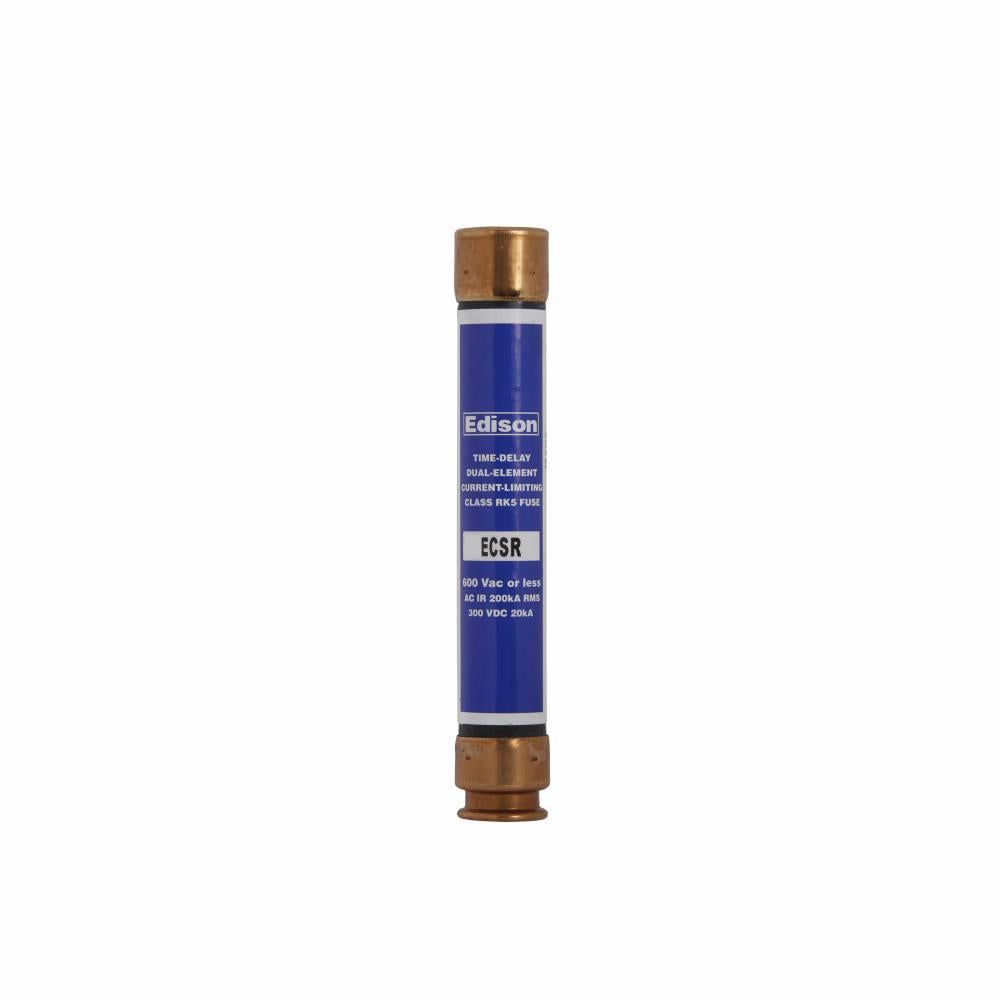

Edison ECSR20 UL Class RK-5 Time Delay Fuse 20 A 600 V

Product Description

The Edison ECSR20 is a time-delay current-limiting fuse with a capacity of twenty amperes and a voltage rating of six hundred volts. This dual-element fuse is designed for superior overload and cycling capabilities, making it suitable for a range of applications including AC power distribution systems and branch circuits.

• Time-delay feature allows for more efficient sizing in inductive circuits.
• 200 kAIC interrupt rating provides reliable short circuit protection.
• Ferrule end connections simplify installation in various setups.

Product Highlights

This fuse is effective for protecting motors, transformers, and other inductive loads. The construction and rating make it ideal for applications that encounter surges and temporary overloads.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Edison Fuse

Technical Specifications

• Type: Current Limiting Time Delay
• Class: RK-5
• Amperage Rating: 20 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Response Time: 10 s at 500%
• Body Size: 0.81 in Diameter x 5 in Length
• Material: Fiberglass
• End Type: Ferrule
