Edison ECSR110 BUSS ECSR110 UL CLASS RK-5 TIME DEL

Product Description

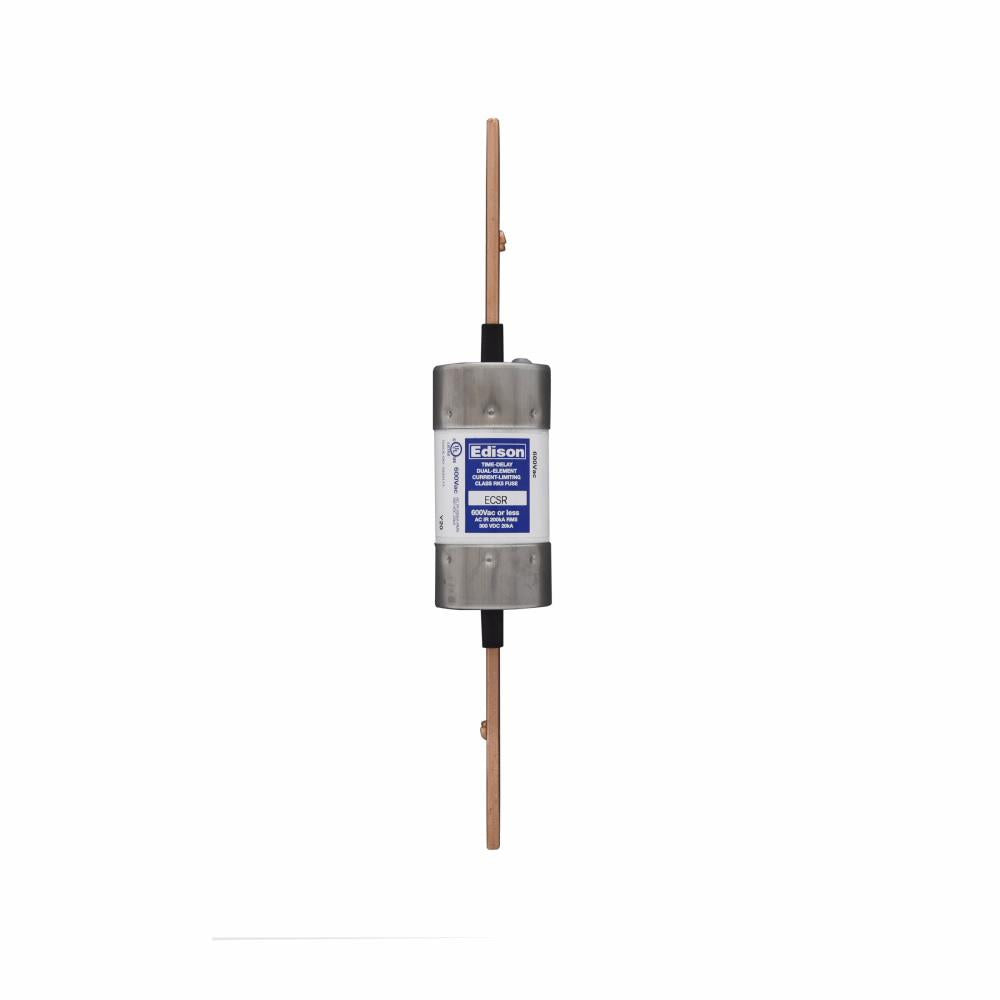

The Edison ECSR110 is a current-limiting fuse designed for superior overload and cycling capabilities. This fuse is rated at 110 amperes and operates at a voltage of six hundred volts. It features a dual-element design and is classified as RK5, suitable for various applications including motor protection and other inductive loads.

• Current limiting function for component protection
• 10 seconds response time at 500% load
• Blade end terminal connection for easy installation

Product Highlights

This fuse offers reliable operation for AC power distribution systems, safeguarding motors and transformers while ensuring optimal performance during overloads.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Edison Fuse

Technical Specifications

• Body Size: 1.61 inches diameter x 9.63 inches length
• Amperage Rating: 110 A
• Voltage Rating: 600 V
• Interrupt Rating: 200 kAIC
• Element Type: Dual
• Class: RK5
• Terminal Type: Blade End
• Response Time: 10 seconds at 500%
