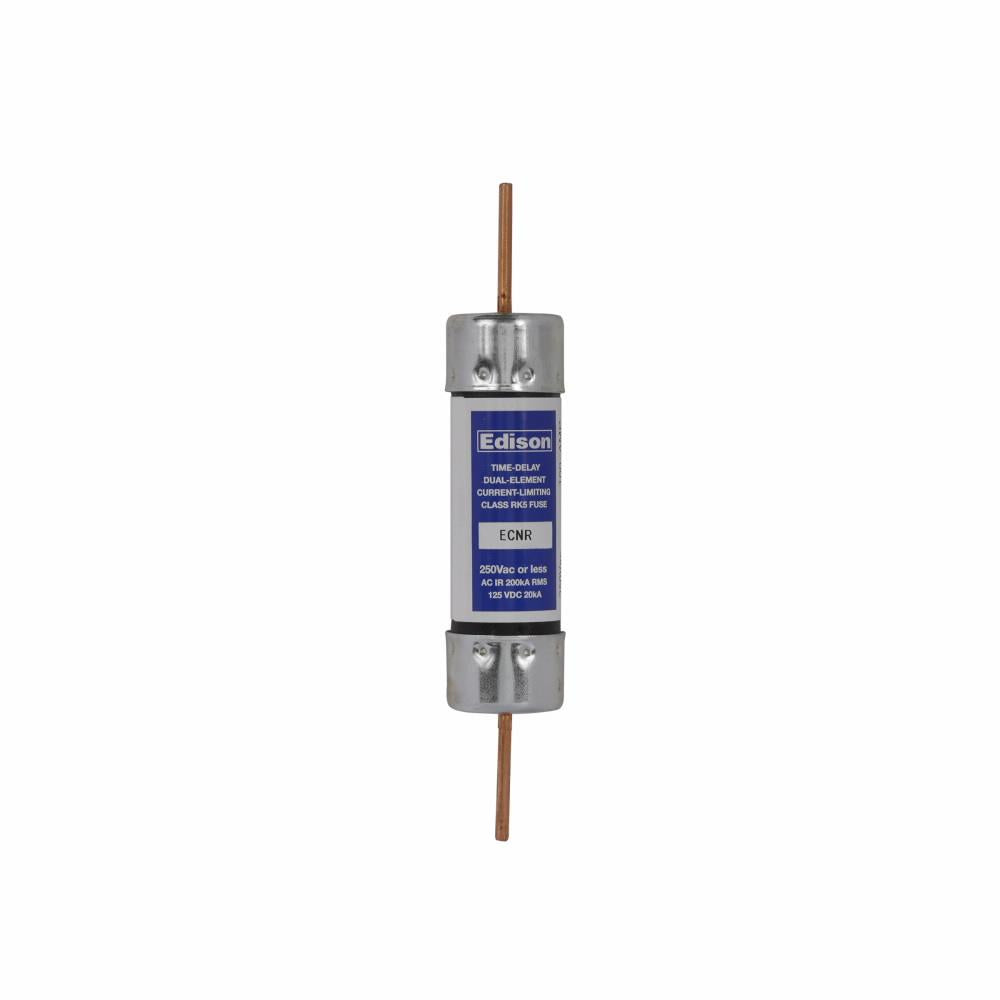

Edison ECNR80 Current Limiting Time Delay Fuse 80 A 250 VAC/125 VDC Class RK5

Product Description

The Edison ECNR80 fuse provides reliable overcurrent protection. It has a current limiting time delay feature and is rated for eighty amperes at two hundred fifty volts AC and one hundred twenty-five volts DC.

• Class RK5 standard for reliable performance
• Suitable for both inductive and non-inductive loads
• Features a cylindrical body for easy installation

Product Highlights

This fuse is designed for use in electrical systems including motors and transformers. It also protects against overload and short-circuit conditions, ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Edison

Technical Specifications

• MPN: ECNR80
• Amperage Rating: 80 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kAIC
• Response Time: 10 s at 500%
• Body Type: Cylindrical
• Body Size: 1.06 in Dia x 5.88 in L
• Element: Dual
• Material: Fiberglass
• Terminal Type: Blade End
• Rejection/Non-Rejection: Rejection
• Class: RK5
