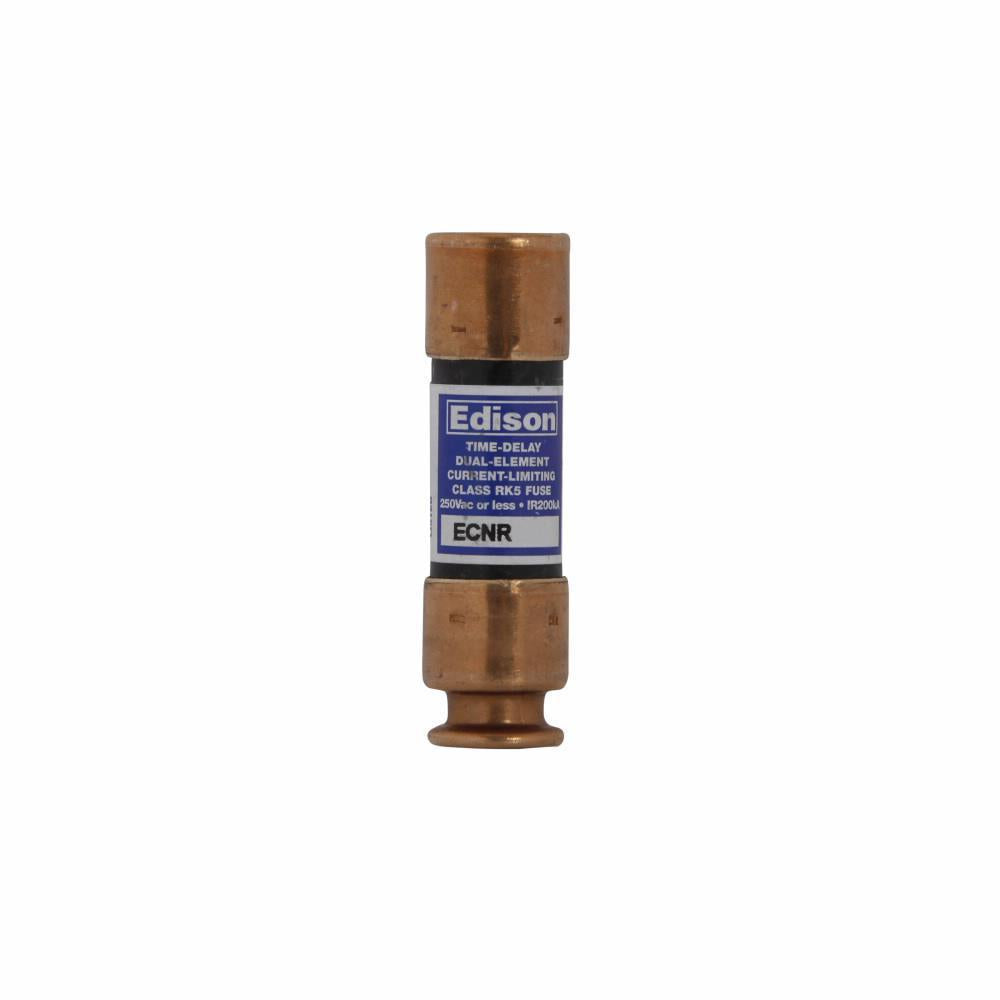

Edison ECNR35 Current Limiting Time Delay Fuse 3.5 A 250 VAC/125 VDC

Product Description

The Edison ECNR35 is a current limiting time delay fuse with a rating of three point five amps. This fuse is designed for applications requiring overcurrent protection in AC and DC circuits. It is suitable for both inductive and non-inductive loads, making it a versatile choice for various electrical systems.

• Current limiting fuse protects against overloads.
• Time delay feature reduces nuisance blowouts.
• Suitable for industrial and residential applications.

Product Highlights

This fuse features a cylindrical body design and is made of fiberglass. It provides reliable performance with an interrupt rating of 200 kAIC.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 3.5 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 200 kAIC
• Class: RK5
• Body Size: 0.56 in Dia x 2 in L
• Element: Dual
• Material: Fiberglass
• Response Time: 8 s at 500%
• Terminal Type: Ferrule
• Type: Current Limiting Time Delay
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
