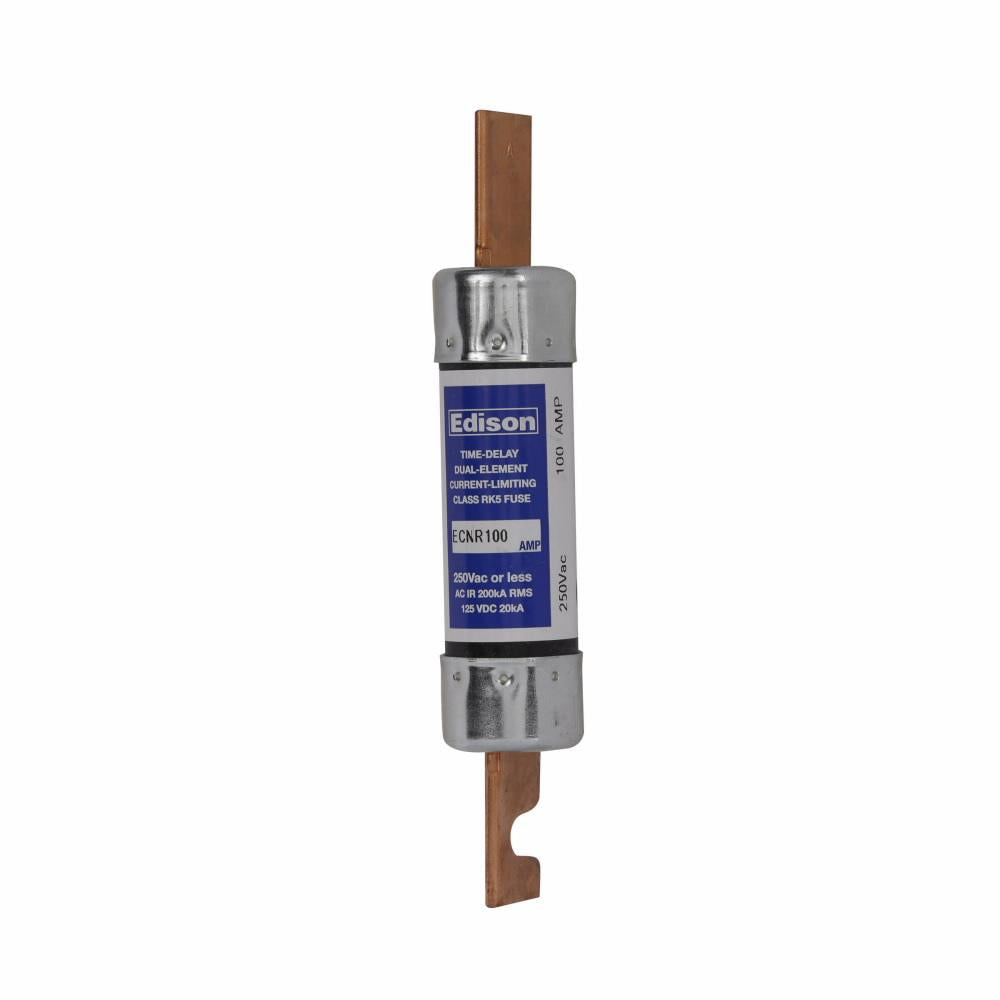

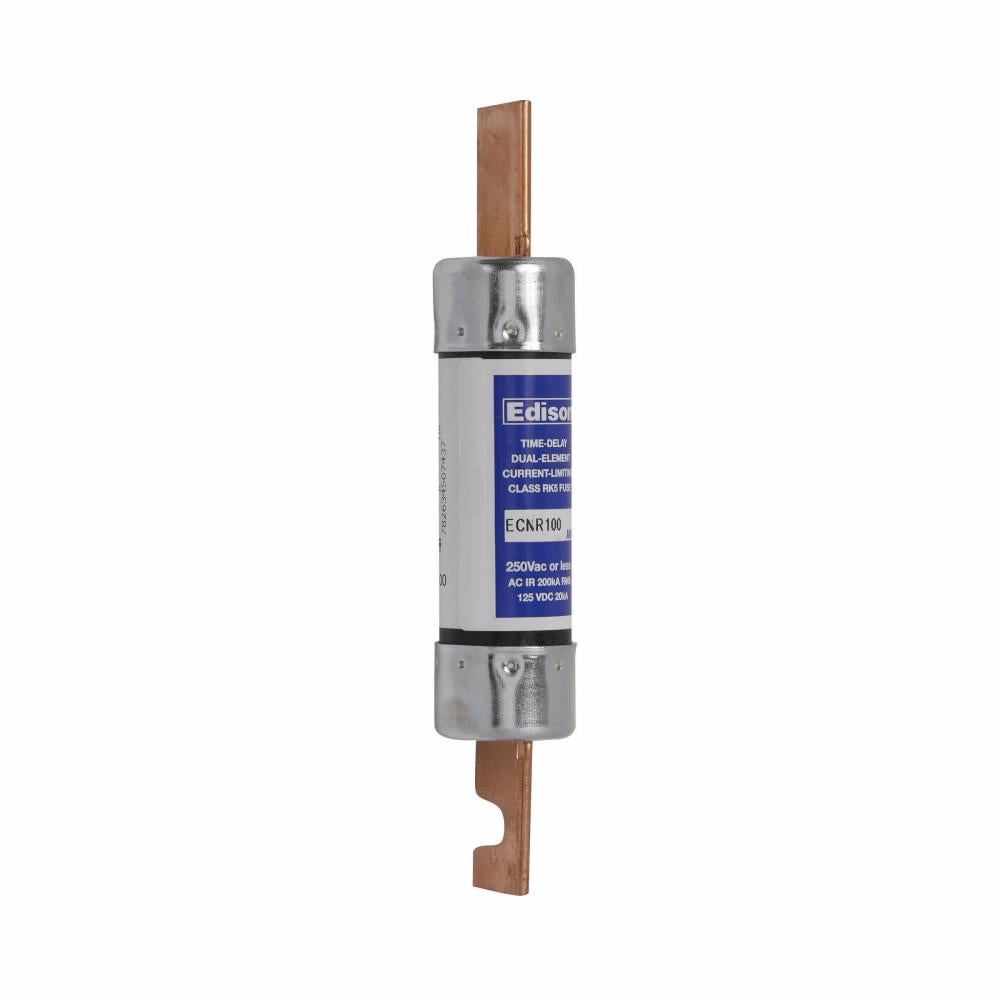

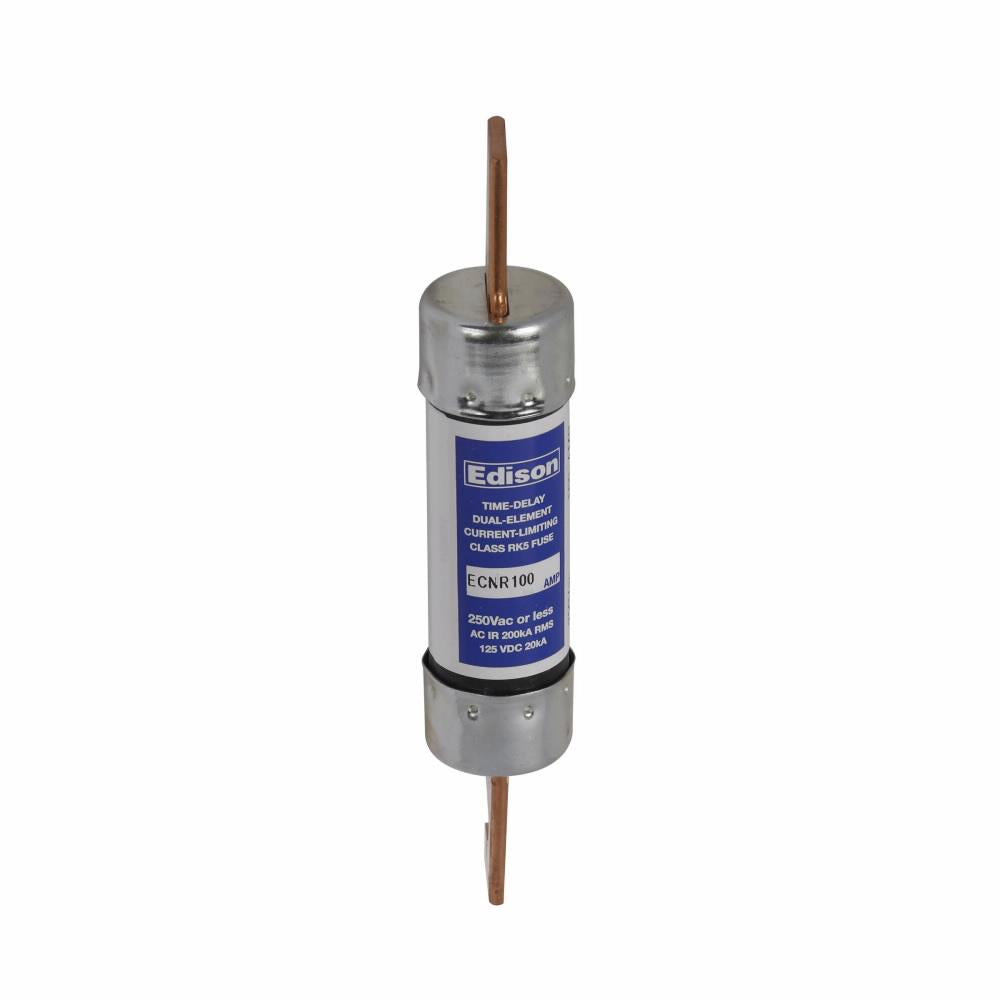

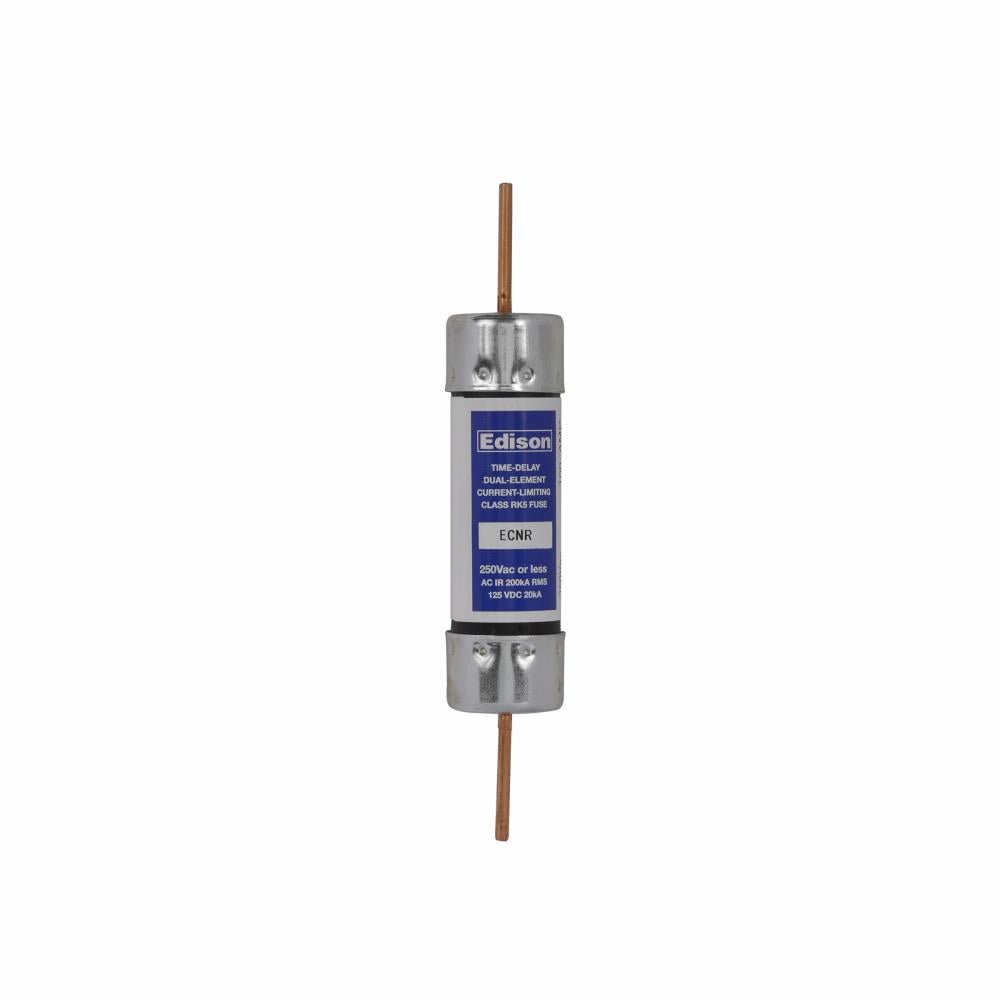

Edison ECNR100 Current Limiting Time Delay Fuse 100 A 250 VAC/125 VDC

Product Description

Edison ECNR100 is a current limiting time delay fuse designed for overcurrent protection. This fuse operates at one hundred amperes with voltage ratings of 250 VAC and 125 VDC. It is part of the RK5 class, ensuring compatibility with a range of electrical applications.

• Provides motor overload and short circuit protection.
• Dual-element fuse design for enhanced protection.
• Response time of ten seconds at five times the fuse rating.

Product Highlights

This fuse is crucial for protecting electrical components like motors and transformers. It can manage inrush currents and provides reliable overcurrent protection.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Edison

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200 kAIC
• Body Size: 1.06 in Diameter x 5.88 in Length
• Material: Fiberglass
• Rejection Type: Rejection
• Indicating Type: Non-Indicating
• Response Time: 10 s at 500%
