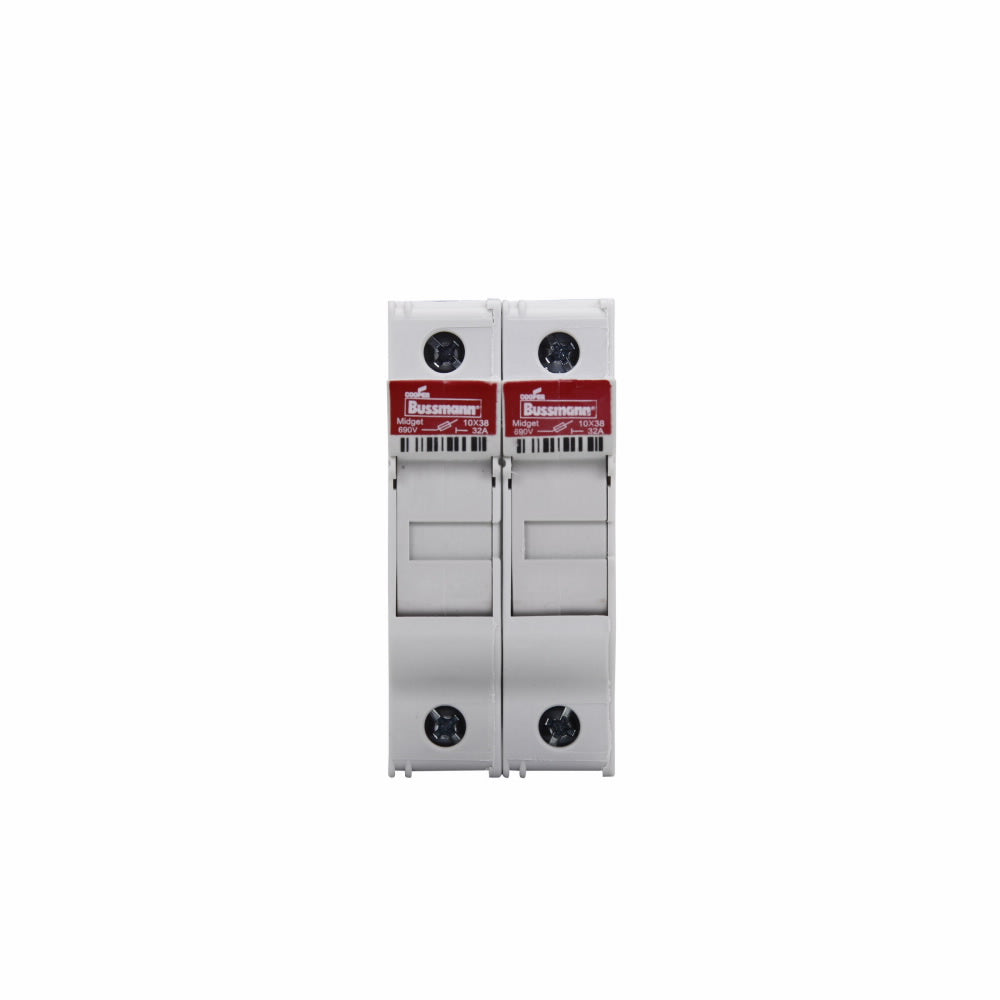

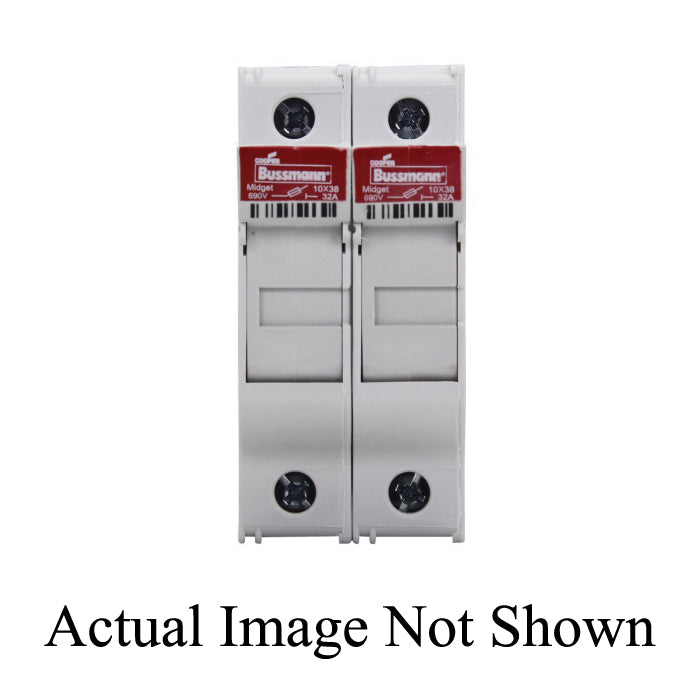

EDISON CHM2DU Finger Safe Modular Fuse Holder

Product Description

The EDISON CHM2DU Finger Safe Modular Fuse Holder is designed for Class CC, ten by thirty-eight millimeter fuses. It supports voltages up to six hundred volts alternating current and six hundred ninety volts direct current, with an ample current rating of thirty to thirty-two amperes. This two-pole fuse holder is suitable for both one-phase and three-phase systems and can accommodate wire sizes from eighteen to four American Wire Gauge via a spade lug connection.

Constructed from durable polyester and colored white, this unit is specifically designed for mounting on DIN rails. It is compatible with FNQ, KLM, FNM, KTK, BAF, FWA, PVM, C10, AGU, BAN, and FWC series midget fuses. Operating efficiently within a temperature range of negative twenty to one hundred twenty degrees Celsius, it also adheres to safety standards with its finger safe construction.

• Suitable for use with seventy-five degrees Celsius or ninety degrees Celsius wires.
• Features IP20 finger safe construction for enhanced safety.
• Agency ratings up to one thousand volts direct current for use with photovoltaic fuses.

Product Highlights

The EDISON CHM2DU provides reliable connectivity and safety in electrical applications.

Product Information

Standard Information

• Brand: EDISON
• MPN: CHM2DU

Technical Specifications

• Voltage: 600 VAC/690 VDC
• Current: 30/32 A
• Poles: 2
• Phase: 1/3 ph
• Class: CC
• Fuse Holder Code: D
• Connection: Spade Lug
• Wire Size: 18 to 4 AWG
• Mounting: DIN Rail
• Fuse Length: 38 mm
• Fuse Diameter: 10 mm
• Temperature: -20 to 120 deg C
• Material: Polyester
• Color: White
• Dimensions: 2.909 in H x 1.378 in W x 3.275 in D
• Type: Finger Safe Modular
• Series: CH Series
• Suitable For Use With: FNQ/KLM/FNM/KTK/BAF/FWA/PVM/C10/AGU/BAN/FWC Series Midget Fuse
• Amps: 30A
• Pole: 2 POLE
• Voltage Rating: 600 VAC, 690 VDC
• Amperage Rating: 30/32 A
• Number of Poles: 2
• Number of Phases: 1/3
• Connection Type: Spade Lug
• Mounting Type: DIN Rail
• Temperature Rating: -20 to 120 deg C
