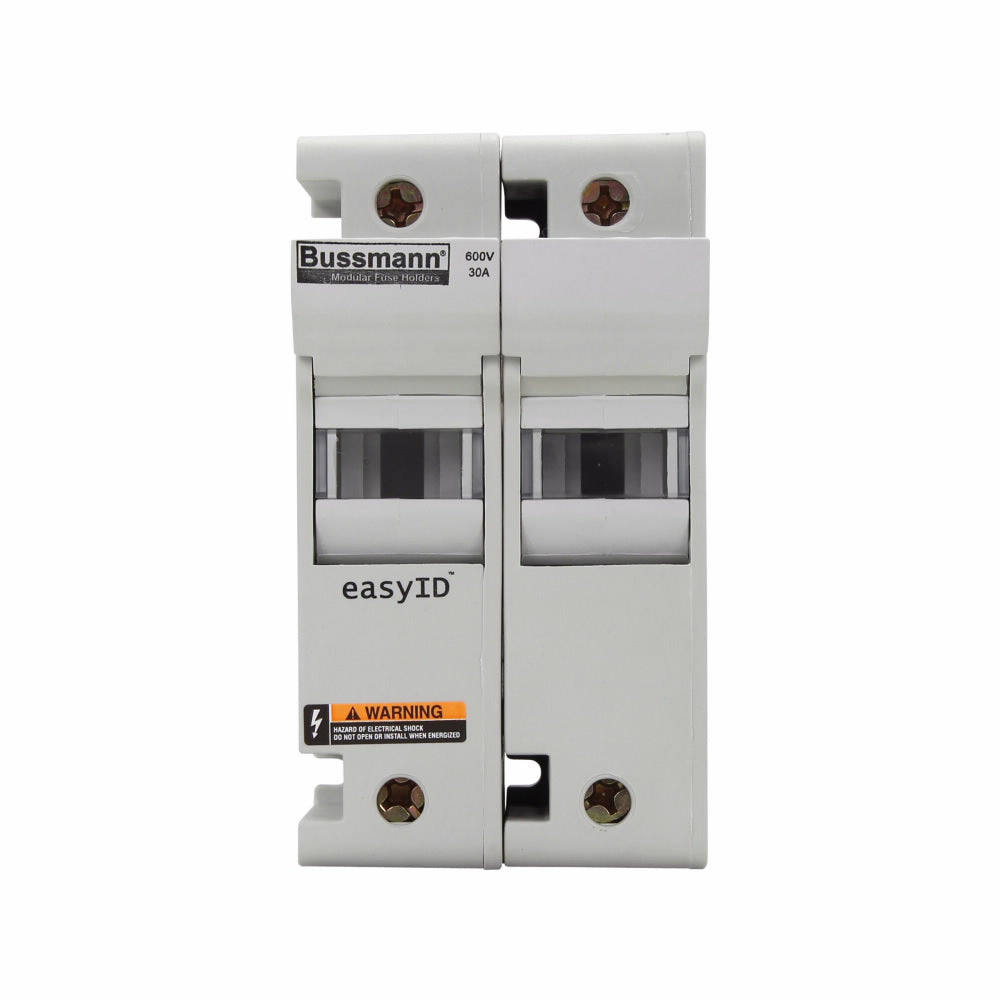

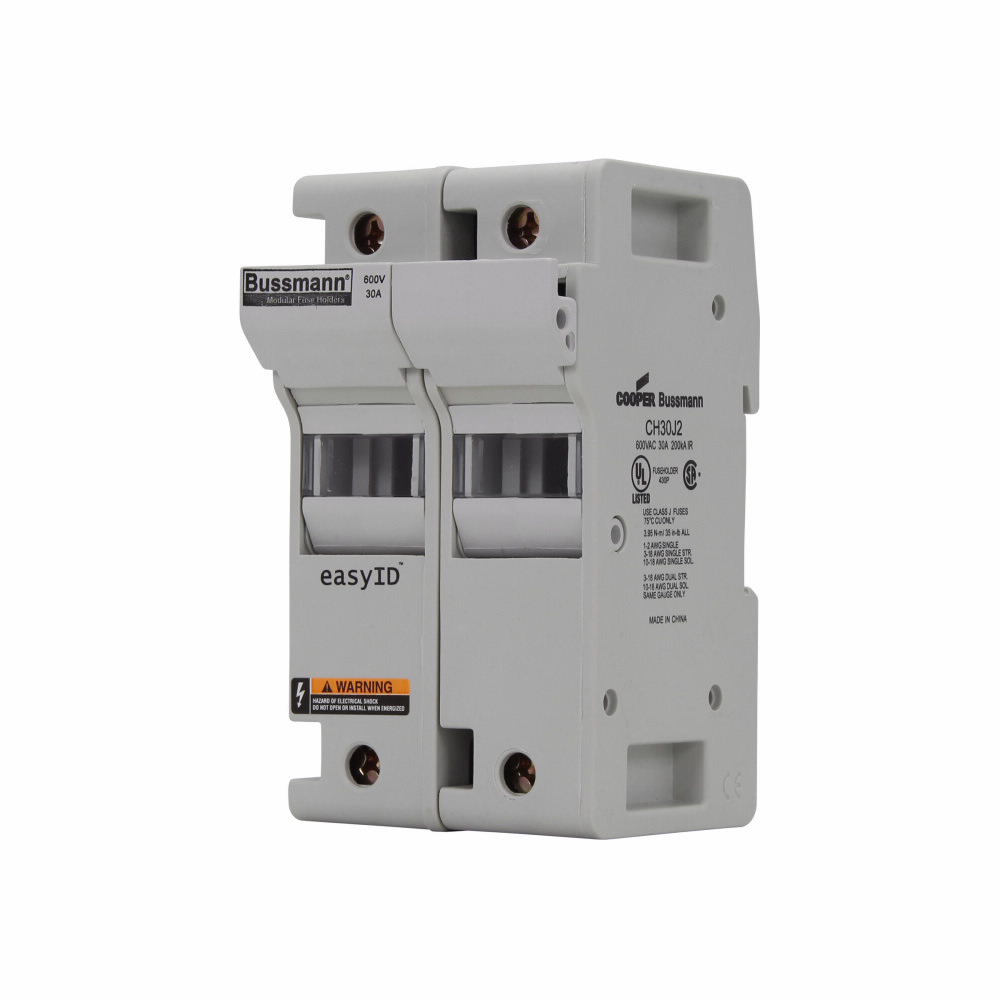

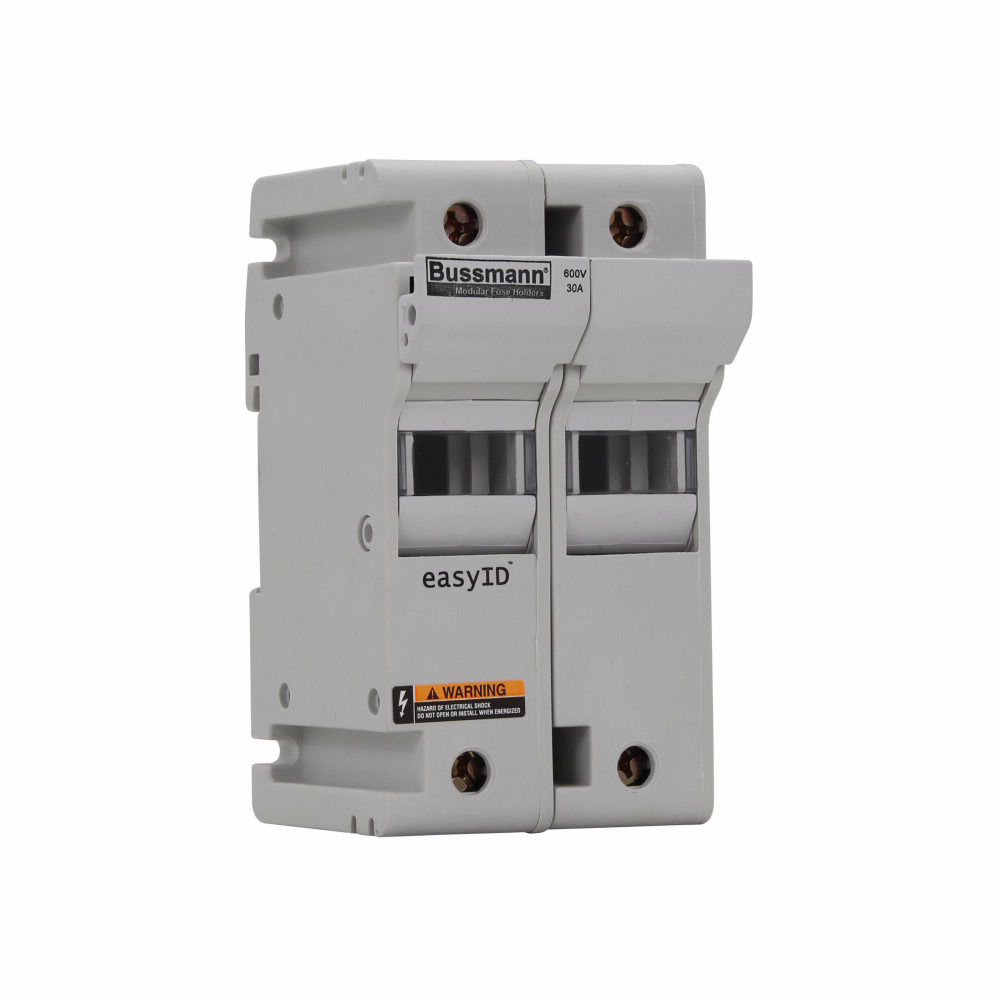

Edison CH30J2 Bussmann Series 2-Pole 30 Amp Modular Fuse Holder

Product Description

The Edison CH30J2 is a modular fuse holder designed for electrical assemblies. This fuse holder accommodates two poles and operates at thirty amps. It features a thermoplastic housing and a tin-plated copper clip for reliable performance. It is suitable for a panel mount or a 35 mm DIN rail installation, supporting voltage applications up to six hundred volts AC or DC.

• Two-pole design for versatile application
• Class J rating ensures compatibility with various devices
• Constructed from durable thermoplastic material

Product Highlights

This modular fuse holder provides safety and reliability in electrical systems.

Product Information

Standard Information

• Brand: Edison
• Manufacturer: Bussmann Mfg.

Technical Specifications

• MPN: CH30J2
• Type: Modular fuse holder
• Voltage: 600 Volt
• Wattage: 85 CEL
• Amperage: 30 Amp
• Material: Tin-plated Copper Clip
• Number of Poles: 2 Pole
• Operating Temperature: 85 Degrees Celsius
• Size: 2.56 inches Length x 2.83 inches Width x 4.59 inches Height
