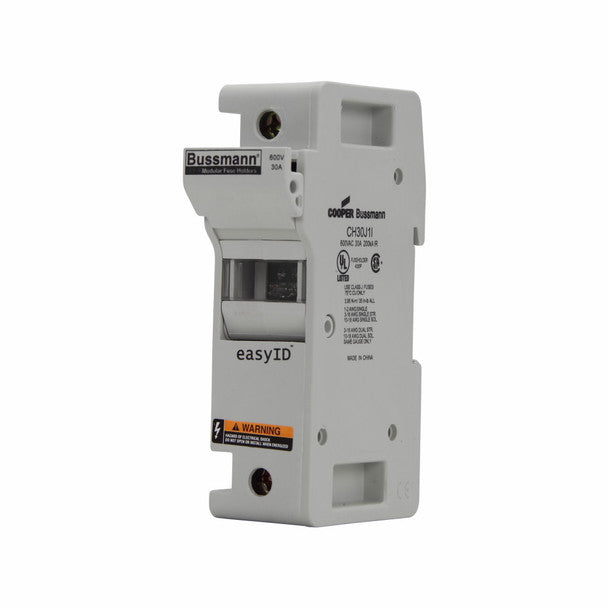

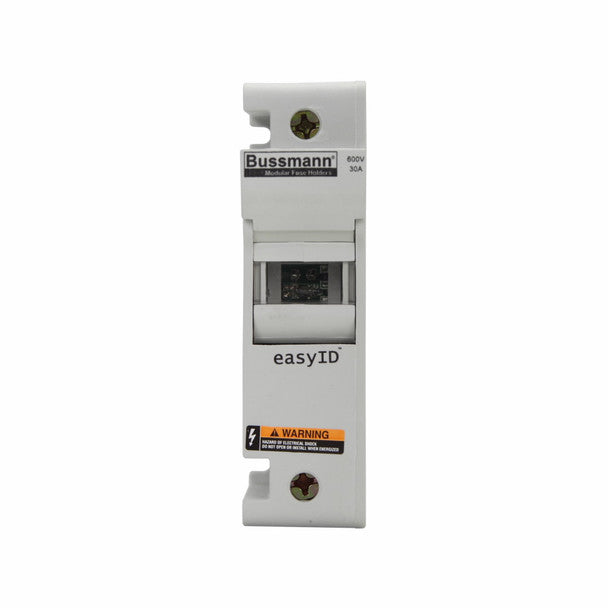

EDISON CH30J1I Fuse Holder 30A (1 Pack)

Product Description

The EDISON CH30J1I is a fuse holder designed for efficient circuit protection. This unit accommodates J Class fuses measuring two point two five inches in length and zero point eight one inches in diameter. It supports a voltage rating of six hundred VAC/VDC and carries a current rating of thirty Amps.

• Finger-safe modular design enhances safety during fuse replacement.
• Accommodates J Class fuses with a thirty Amp current rating.
• Mountable on DIN rails or panels for flexible installation options.

Product Highlights

This fuse holder is made from thermoplastic material, features a white color, and has a box lug connection type that accepts wire sizes from eighteen to one AWG. The holder is compatible with LPJ Series time-delay fuses, JKS Series fast-acting fuses, and DFJ Series high-speed Class J fuses. It operates effectively up to a maximum temperature of eighty-five degrees Celsius.

Product Information

Standard Information

• Brand: EDISON
• MPN: CH30J1I

Technical Specifications

• Amperage Rating: 30 A
• Class: J
• Color: White
• Connection Type: Box Lug
• Dimensions: 1.28 inches L x 2.83 inches W x 4.59 inches H
• Fuse Diameter: 0.81 inches
• Fuse Length: 2.25 inches
• Material: Thermoplastic
• Mounting Type: DIN Rail/Panel
• Number of Phases: 3
• Number of Poles: 1
• Series: CH Series
• Suitable For Use With: LPJ Series Time Delay, JKS Series Fast Acting, DFJ Series High Speed Class J Fuse
• Temperature Rating: 85 degrees Celsius
• Type: Finger Safe Modular
• Voltage Rating: 600 VAC/VDC
• Wire Size: 18 to 1 AWG
