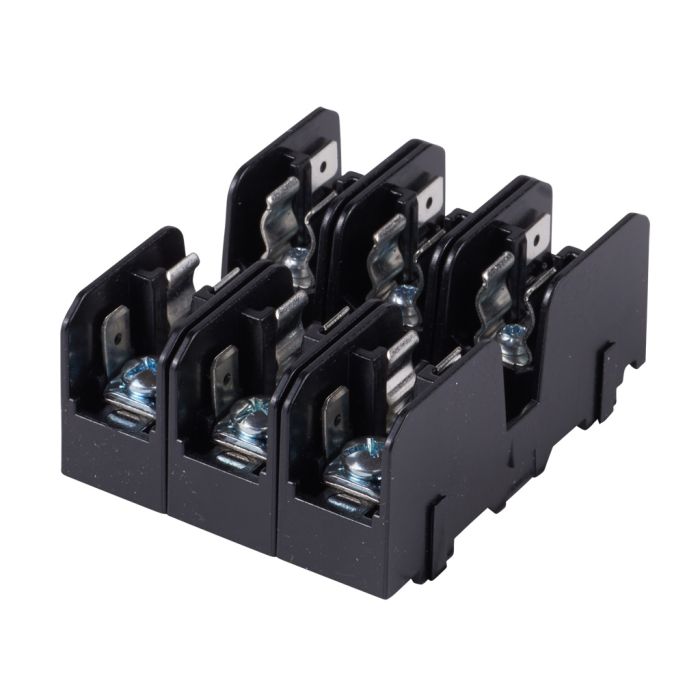

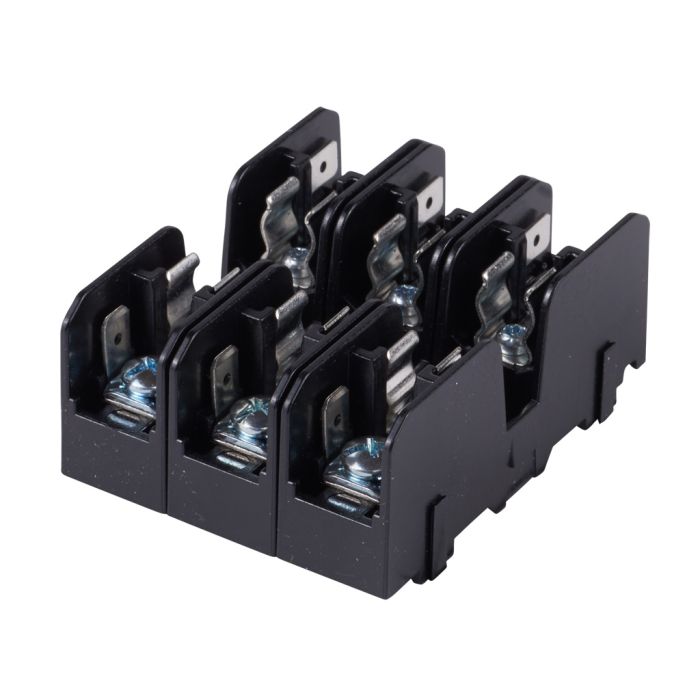

EDISON BCM603-3PQ Modular Fuse Block 30A 600V

Product Description

The EDISON BCM603-3PQ is a modular fuse block produced for use with Class CC fuses. It has a rating of 30A and 600V, featuring a configuration with three poles. It is designed to accommodate copper conductors ranging from eighteen to ten AWG. The connections are made through pressure plates that utilize quick-connect terminals. Users can choose between mounting it on a 35mm DIN rail or via panel mounting. This unit is provided in a package that includes five blocks. The total weight of the product is 0.523 kg.

• Accepts Class CC fuses for effective circuit protection.
• Rated for 30A and up to 600V for reliable performance.
• Mounting options include 35mm DIN rail or panel mount installation.

Product Highlights

Product Information

Standard Information

• Brand: EDISON
• Weight: 0.523 kg

Technical Specifications

• MPN: BCM603-3PQ
• Rated Current: 30A
• Rated Voltage: 600V
• Fuse Type: Class CC
• Conductor Size: 18-10 AWG
• Mounting Style: 35mm DIN rail or panel
• Quantity per Package: 5 units
• Weight: 0.523 kg
