ECM Industries USPA-350SS-DB ILSCO AL MEC INS (A)350-10(B)350-10 UL CSA KIT

Product Description

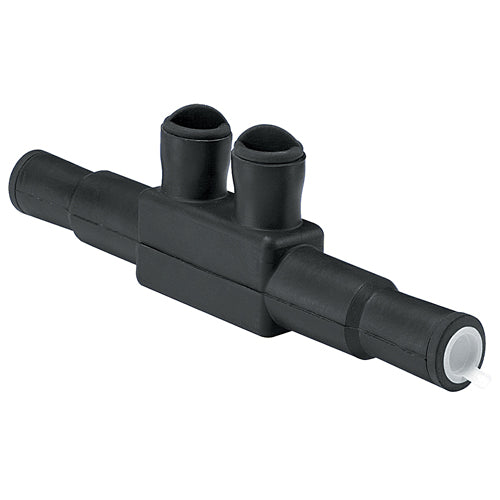

The ECM Industries USPA-350SS-DB is a dual rated in-line waterproof splice for connecting aluminum and copper conductors. This splice supports conductor sizes from ten AWG to three hundred fifty kcmil, making it versatile for various applications. It is designed to be used in direct burial applications. The product is built to withstand harsh conditions and offers reliable performance for electrical connections.

• Designed for aluminum and copper conductors
• Exceptional sealing for moisture resistance
• Rated for up to six hundred volts AC

Product Highlights

The USPA-350SS-DB splice is encapsulated in EPDM rubber, ensuring durability and resistance against environmental factors. It also features a solid wire stop to enhance connector integrity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366994110

Technical Specifications

• Application: For direct burial in earth or concrete
• Conductor Size: 10 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 7 in L
• Finish: Electro-Plated Tin
• Manufacturer Part Number: USPA-350SS-DB
• Material: Aluminum
• Specifications: 350 in-lb Torque, 5/16 in Hex
• Standards/Approvals: CSA LR-29601|UL 486D/88X4/E125087|ANSI 119.1/119.4|RUS Certified|PROP65
• Temperature Rating: 90 deg C
• Type: Type USPA-SS Dual Rated
• Voltage Rating: 600 VAC
