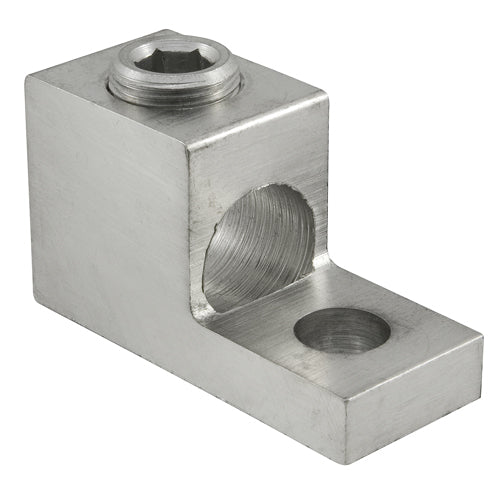

ECM Industries TA-800-S ILSCO AL MECH 800-3/0 21/32 T UL CSA 78366989312

Brand: ECM INDUSTRIES
SKU: TA-800-S
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

ECM Industries TA-800-S is a mechanical terminal lug designed for high performance in electrical connections. This product accommodates conductors ranging from three zero American Wire Gauge to eight hundred thousands circular mils. It features a single bolt hole and is crafted from 6061-T6 aluminum alloy.

  • Suitable for use with copper or aluminum conductors.
  • Electro-plated tin finish reduces contact resistance.
  • Rated for 2000 volts alternating current, temperature rated to 90 degrees Celsius.

Product Highlights

This mechanical terminal lug ensures reliable connections and is compliant with relevant standards.

Product Information

Standard Information

  • Manufacturer: ECM Industries
  • Part Number: TA-800-S
Technical Specifications
Application
Terminating Connector Applications
Conductor Size
3/0 AWG to 800 kcmil
Conductor Type
Aluminum/Copper
Dimensions
3.25 inches L x 1.3125 inches W x 1.8125 inches H
Finish
Electro-Plated Tin
Material
6061-T6 Aluminum Alloy
Number of Bolt Holes
1
Series
TA Series
Specifications
1/2 inch Hex
Standards/Approvals
CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
Stud Size
5/8 inch
Temperature Rating
90 degrees Celsius
Tongue Size
1.5 inches L x 1.313 inches W x 0.5 inches THK
Tongue Type
Straight
Type
1-Conductor Dual Rated
Voltage Rating
2000 VAC
