ECM Industries T3A2-600N ILSCO AL MEC 2-600 9/16-1-3/4 T UL CSA 78366990057

Product Description

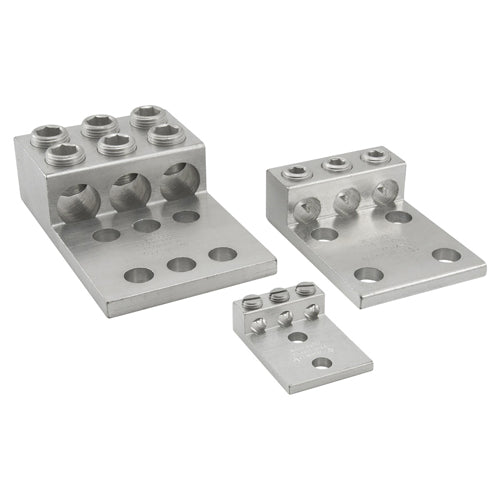

ECM Industries offers the T3A2-600N, a mechanical terminal lug designed for reliable electrical connections. This product accommodates 2 AWG to 600 kcmil aluminum or copper conductors. The terminal lug features several key attributes:

• Constructed from high-strength 6061-T6 aluminum alloy.
• Accepts a 1/2 inch stud with six boltholes for secure mounting.
• Designed for use in various terminating connector applications.

Product Highlights

The T3A2-600N ensures low contact resistance while providing a strong electrical connection. It is suitable for applications requiring durability and safety.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: T3A2-600N

Technical Specifications

• Conductor Size: 2 AWG to 600 kcmil
• Type: 3-Conductor Dual Rated
• Stud Size: 1/2 inch
• Material: 6061-T6 Aluminum Alloy
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees C
• Dimensions: 5-1/2 inches L x 3-1/2 inches W x 1-1/2 inches H
• Number of Bolt Holes: 6
