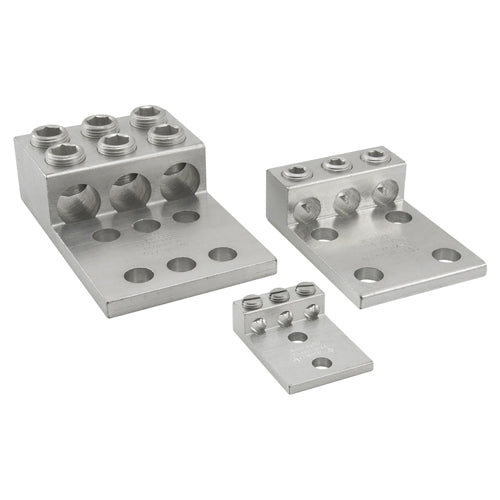

ECM Industries T3A2-250N ILSCO AL MEC (3)250-6 9/16-1-3/4 T UL CSA

Product Description

ECM Industries T3A2-250N is a mechanical terminal lug designed for dual usage with aluminum and copper conductors. This product supports conductor sizes from six AWG to two hundred fifty kcmil. The lug features a half-inch stud and has three bolt holes for secure mounting.

• Manufactured from high strength 6061-T6 aluminum alloy
• Chamfered wire entry for easier installation
• Designed for a minimum of two bolts for mounting

Product Highlights

This mechanical terminal lug ensures low contact resistance and reliable performance for both copper and aluminum conductors.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: T3A2-250N

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 4 in L x 2.813 in W x 1.187 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 3
• Series: T3A
• Specifications: 5/16 in Hex, 1-3/4 in Mounting Hole Spacing
• Standards/Approvals: CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 3 in L x 2.813 in W x 0.312 in THK
• Tongue Type: Straight
• Type: 3-Conductor Dual Rated
• Voltage Rating: 2000 VAC
