ECM Industries T3A2-2 ILSCO LUG 3-WIRE 14-2AWG

Product Description

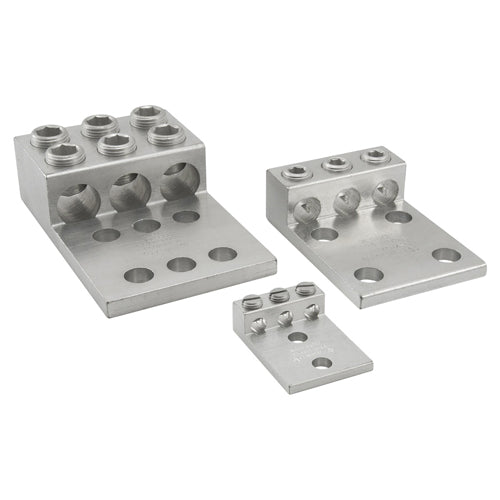

The ILSCO T3A2-2 is a mechanical terminal lug designed for use with aluminum or copper conductors. This lug supports multiple wire sizes from fourteen to two AWG. The product features a five-sixteenths inch stud and includes three bolt holes for secure mounting. It meets multiple industry standards to ensure reliability in electrical applications.

• Manufactured from high strength 6061-T6 aluminum alloy
• Rated for voltages up to 2000 VAC
• Designed for ease of installation with chamfered wire entry

Product Highlights

This lug is built for durability and low contact resistance, making it suitable for terminating connections in various electrical systems. The straight tongue design provides stable connectivity for effective power distribution.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366989654

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 14 to 2 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 2.187 in L x 1.594 in W x 0.625 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 3
• Series: T3A
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Tongue Size: 1.687 in L x 1.594 in W x 0.187 in THK
• Tongue Type: Straight
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
• Stud Size: 5/16 in
