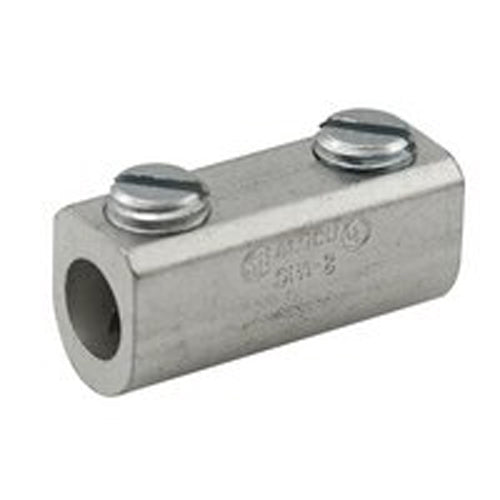

ECM Industries SPA-250 ILSCO Splicer Reducer #250 - #6 AWG

Product Description

ECM Industries SPA-250 is a dual rated splicer and reducer. It is designed for use with aluminum and copper conductors. This product accommodates conductor sizes from six AWG to two hundred fifty kcmil. The SPA-250 features two screws for connection and is rated for two thousand VAC, making it suitable for various electrical applications.

• Dual rated for aluminum and copper conductors
• Works with conductor sizes from 6 AWG to 250 kcmil
• Electro-plated for improved conductivity

Product Highlights

This splicer and reducer is versatile and can be used in circuits rated for thirty-five kV or less. It complies with important standards for electrical safety.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366985704

Technical Specifications

• Type: Type SPA Dual Rated
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Dimensions: 2.312 in L x 0.875 in W x 1 in H
• Number of Screws: 2
• Finish: Electro-Plated Tin
• Standards/Approvals: CSA File No. LR29601|UL 486A-B|UL 453G File No. E6207|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
