ECM Industries PBTD-6-250 ILSCO AL MEC (6) 250MCM-6 INS DUAL ENTRY T UL

Product Description

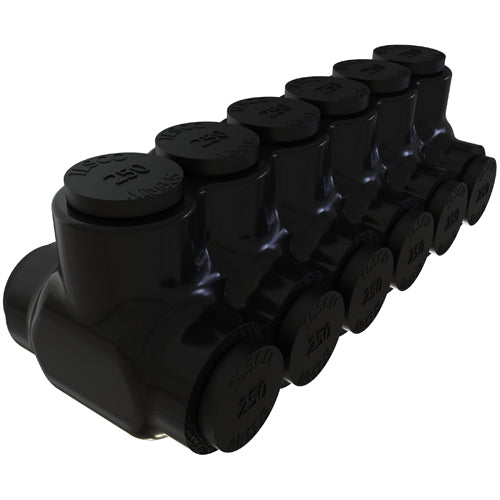

ECM Industries PBTD-6-250 is a multi-tap connector designed for reliable electrical connections. This type PBTD dual entry connector features six ports with insulation, suitable for aluminum and copper conductors. It operates at 600 VAC and accommodates wire sizes from 6 AWG to 250 kcmil. The connector supports a variety of applications in electrical systems where space and reliability are critical.

• 6-port dual-rated insulated
• Complies with NEC standards
• Temperature range of -45 to 90 degrees Celsius

Product Highlights

This connector features a patented screw design that helps prevent oxide formation, ensuring lasting performance and connection integrity. It offers flexibility during installation and is pre-filled with DE-OX oxide inhibiting compound for enhanced reliability.

Product Information

Standard Information

• Brand: ECM Industries
• Manufacturer Part Number: PBTD-6-250

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 5.75 in L x 2 in W x 2.17 in H
• Voltage Rating: 600 VAC
• Temperature Rating: -45 to 90 degrees Celsius
• Standards/Approvals: CSA File No. LR-29601 | UL 486A/486B | UL 453G | UL File No. E6207 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Specifications: 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A
