ECM Industries PB2-300 ILSCO AL MEC 300-6 21/64 T UL

Product Description

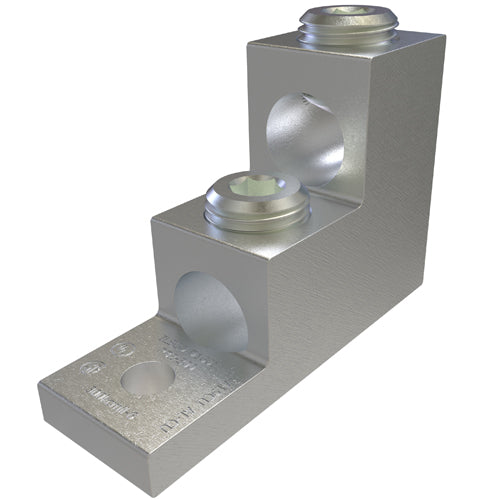

ECM Industries PB2-300 is a dual-rated panelboard stack lug designed for use with aluminum or copper conductors. This lug supports conductor ranges from six AWG to 300 kcmil and features a five-sixteenth inch bolt stud for secure connections. The electrical rating is 2000 VAC, making it suitable for various applications.

• Terminating connector applications
• Manufactured from durable aluminum
• Electro-tin plating for low contact resistance

Product Highlights

Use this lug for reliable connections in electrical panels. The design prioritizes ease of installation while ensuring compliance with industry standards.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366918420

Technical Specifications

• Type: Type PB Dual Rated
• Application: Terminating Connector Applications
• Conductor Range: 6 AWG to 300 kcmil
• Electrical Ratings: 2000 VAC
• Finish: Electro-Plated Tin
• Height: 2 in
• Width: 1 in
• Length: 3 in
• Hex Size: 5/16 in
• Material: Aluminum
• Standards/Approvals: CSA File No. LR29601 | UL 486A-B | UL 453G | UL File No. E6207 | ECCN EAR99
• Suitable For Use With: Aluminum or Copper Conductor
