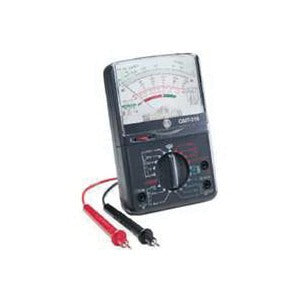

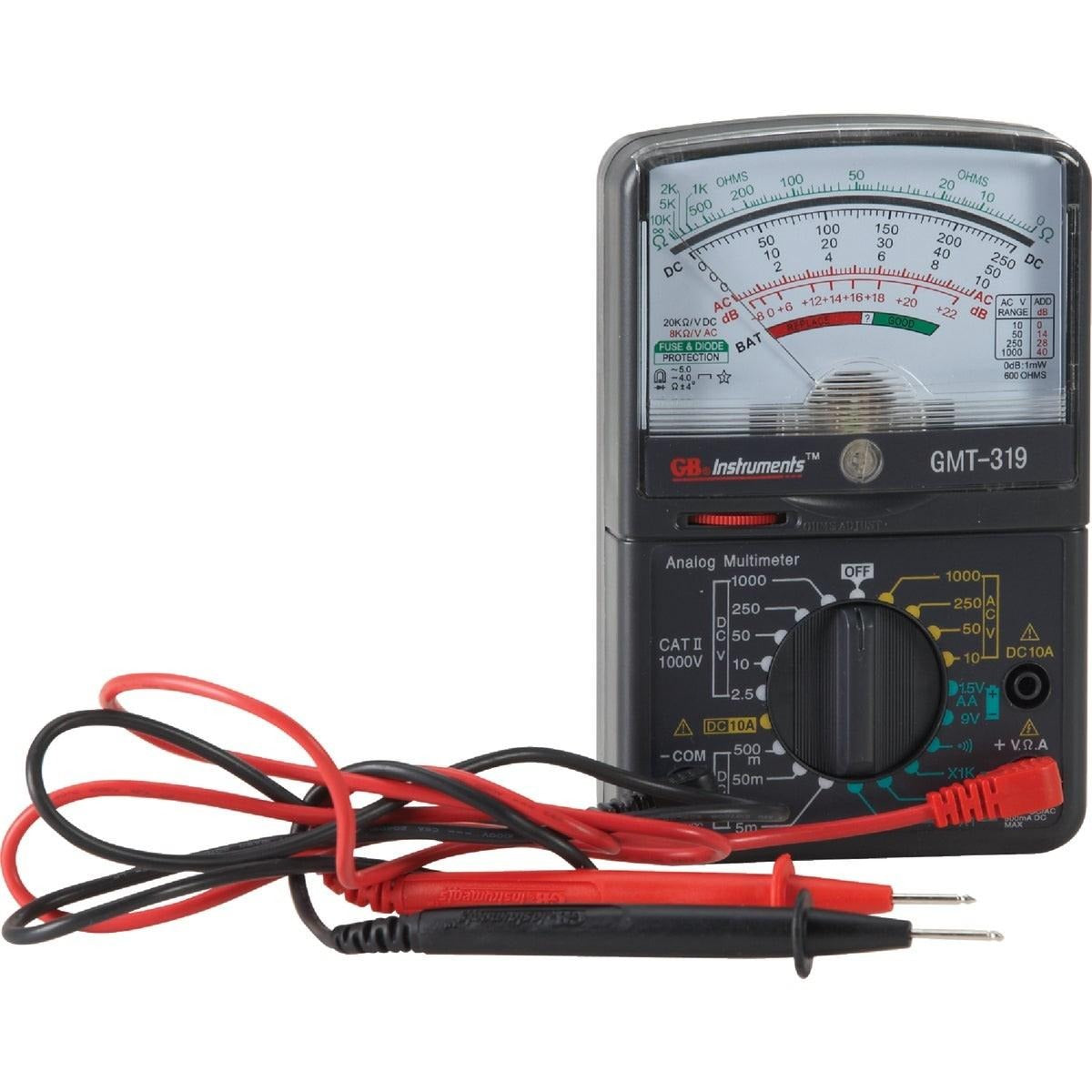

Gardner Bender GMT-319 7-Function Analog Multimeter

Product Description

The Gardner Bender GMT-319 is a 7-function analog multimeter that provides 19 ranges for measuring DC voltage, AC voltage, DC current, resistance, continuity, decibels and battery condition. It measures DC voltage at 2.5, 10, 50, 250 and 1000 V; AC voltage at 10, 50, 250 and 1000 V; DC current at 5, 50 and 500 mA (fused) and 10 A on a separate fused jack. Resistance range is 1 ohm to 10 MΩ. The meter includes a mirror scale, built-in 0 ohm adjustment dial, fuse overload protection and manual range selection, and is powered by 1.5 V batteries (included).

• Measurement ranges: DC voltage 2.5/10/50/250/1000 V; AC voltage 10/50/250/1000 V; DC current 5/50/500 mA (fused) and 10 A (separate fused jack); resistance 1 Ω to 10 MΩ; continuity and decibel functions.
• Design and protection: analog needle display with mirror scale to reduce parallax, 0 Ω adjustment dial, manual range selection and fuse overload protection; accuracy +/-5% VAC, +/-4% VDC.
• Contents and power: includes test leads, two 1.5 V batteries, spare fuse and tri-lingual instruction manual; continuity buzzer (<100 Ω) and decibel function for transistor gain measurement.

Product Highlights

7-function, 19-range analog multimeter with fused current protection, mirror scale, 0 Ω adjustment dial; measures up to 1000 V AC/DC and resistance to 10 MΩ.

Product Information

Standard Information

• Brand: GARDNER BENDER
• Manufacturer Part Number: GMT-319
• Country of Origin: China
