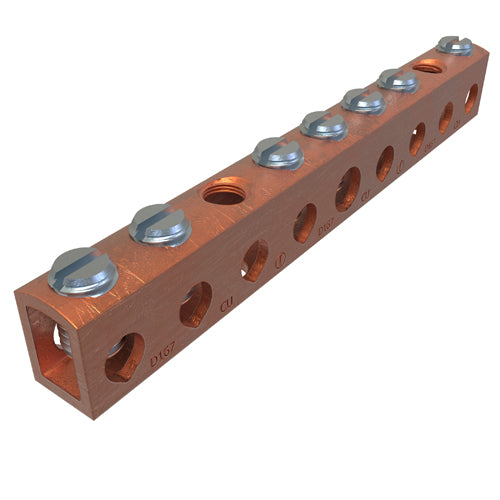

ECM Industries D167-6 ILS 6TAP Copper Ground Bar

Product Description

The ECM Industries D167-6 ILS 6TAP Copper Ground Bar is designed for effective grounding in electrical systems. It has a length of three and one-half inches, a width of eleven thirty-seconds inches, and a height of three-quarters of an inch. This product supports a voltage rating of two thousand volts alternating current (VAC) and accommodates cables from fourteen to six American Wire Gauge (AWG) for taps and fourteen to four AWG for mains.

• Constructed from high-strength copper
• Allows for multiple conductor sizes in one connector
• Includes two mounting holes for easy installation

Product Highlights

The copper material ensures optimal conductivity and reliability for grounding applications. This mechanical neutral bar is suitable for tap connectors and grounding connectors.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366916105

Technical Specifications

• Application: For tap connector/grounding connector
• Bar Height: 3/4 in
• Bar Length: 3-1/2 in
• Bar Width: 11/32 in
• Cable Main: 14 to 4 AWG
• Cable Tap: 14 to 6 AWG
• Material: Copper
• Voltage Rating: 2000 VAC
• Tap Quantity: 6
• Mounting Hole Quantity: 2
• Standards/Approvals: UL 486A/486B File No. E6207 | UR/CSA Certified | PROP65: does not contain known harmful chemicals
