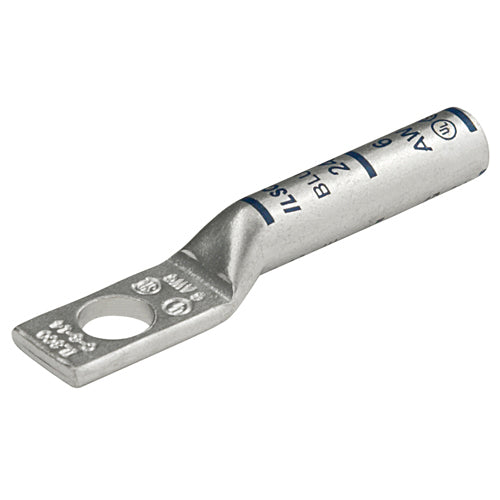

ECM Industries CLNS-6-14 ILSCO CU CMP NO SYT 6 AWG 9/32 T UL CSA LONG B

Product Description

ECM Industries offers the CLNS-6-14 ILSCO SureCrimp Lug Compression Connector. This one-hole connector is designed for terminating applications with a six AWG flexible copper conductor. Its die code is ILD-24, and it supports voltages up to thirty-five kV AC.

• Constructed from tin plated copper
• Features a long barrel design for better crimping
• Meets industry standards for electrical connections

Product Highlights

Reliable connector for various electrical wiring needs. Offers easy installation with superior conductivity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366962894

Technical Specifications

• Application: Terminating Connector Applications
• Color: Blue
• Conductor Size: 6 AWG
• Material: Tin Plated Copper
• Overall Length: 2 inches
• Stud Size: 1/4 inch
• Barrel Size: 0.225 inches ID x 0.312 inches OD x 1.125 inches Length
• Voltage Rating: 600 VAC to 35 kV VAC
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Size: 0.281 inches
