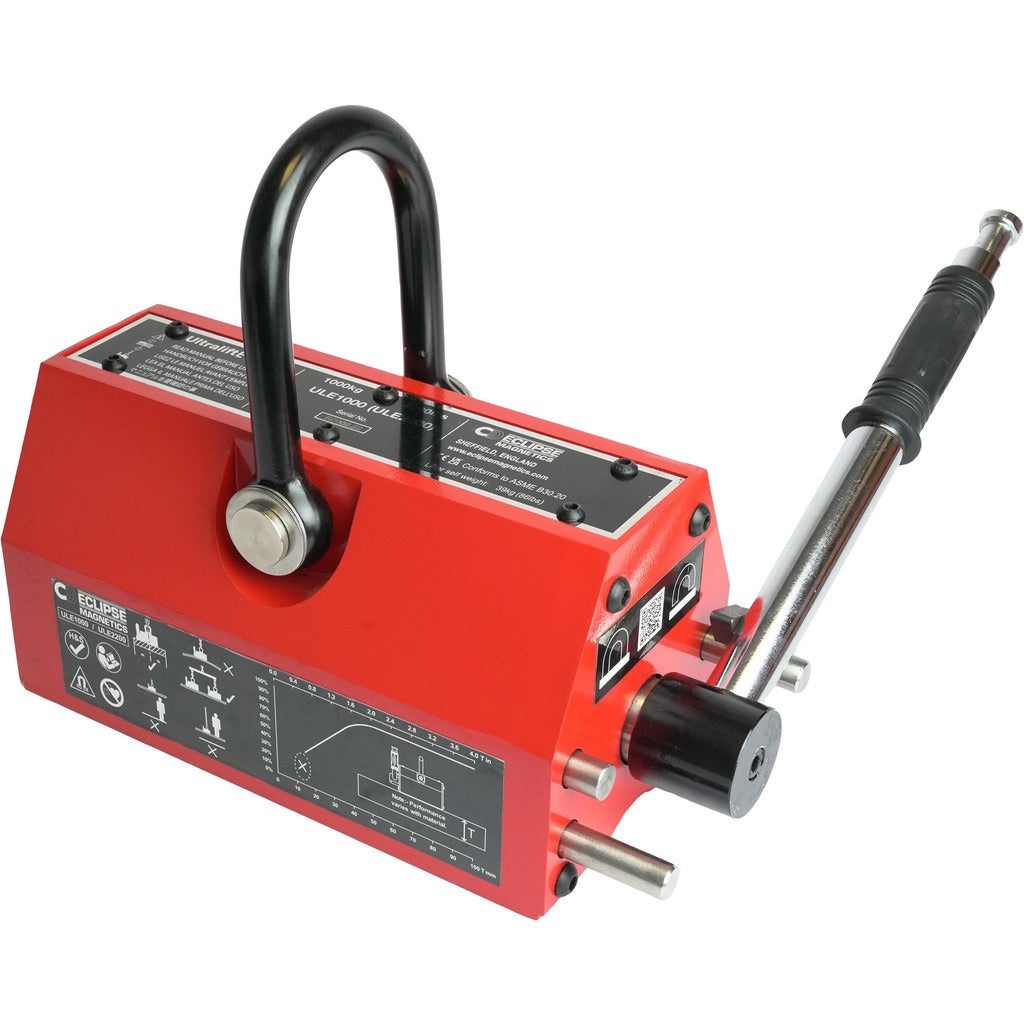

Eclipse ULE0220 Magnetic Lifter 220 Lb Neodymium

Product Description

The ECLIPSE ULE0220 is a permanent magnetic lifting device designed for moving ferrous steel plate and round bar stock without an external power supply. The unit generates holding force through a neodymium magnet body and is activated and released via a locking switch handle, which also serves as the primary safety mechanism. It carries a flat-surface load capacity of 220 lb and a round-object capacity of 110 lb, with a rated 3:1 safety factor. Rated for use in environments up to 104 degrees F, the ULE0220 is suited for fabrication shops, machine shops, and industrial material handling where frequent lifting and repositioning of steel stock is required.

The ULE0220 is applied in industrial and commercial settings for lifting ferrous flat plate and round bar. Typical users include machinists, fabricators, rigging crews, and millwrights who need a portable, no-power lifting solution for repetitive material handling tasks. The compact two-pole magnet head, measuring approximately 2.6 inches in head diameter and 5.2 inches in length, fits into tight staging areas and works directly on ferrous steel surfaces without fixturing.

Key Features

• 220 lb flat-object load capacity with 3:1 safety factor
• 110 lb round-object load capacity for ferrous bar stock
• No external power supply required — permanent neodymium magnet
• Locking switch handle provides positive on/off safety mechanism
• Neodymium magnet body for high magnetic flux density in a compact form
• Meets ASME B30.20, LOLER, and PUWER standards

Compatibility

Designed as an OEM-style replacement for magnetic lifters in general industrial ferrous material handling applications. Replaces MSC part number 95026985.

Installation Notes

Installation and operation should be performed by qualified rigging or maintenance personnel familiar with ASME B30.20 below-the-hook lifting requirements. Before attaching the lifter, verify the load surface is clean, flat, and free of paint, scale, or debris that could reduce magnetic contact area. Never exceed the rated load capacity for the contact geometry in use — flat-plate and round-bar ratings are not interchangeable. Inspect the locking switch handle and magnet body for wear or damage before each use.
