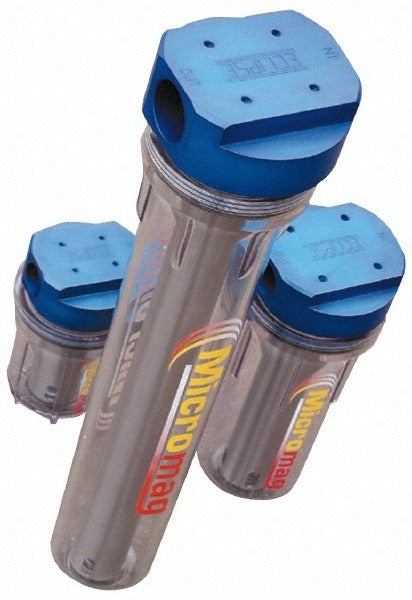

Eclipse MM10/1.0/MSC Magnetic Filtration Unit 10 in Npt

Product Description

The ECLIPSE MM10/1.0/MSC is a 10-inch magnetic filtration unit designed to remove ferrous particles from fluid systems in industrial and commercial applications. It uses magnetic attraction to capture metallic contaminants before they reach sensitive downstream components such as pumps, valves, and heat exchangers. The unit features a 1.0-inch NPT port and outlet, making it straightforward to integrate into existing piping. Rated for flow up to 100 liters per minute, it handles moderate to high-flow circuits. Licensed trades and maintenance technicians install this unit as part of a preventive maintenance strategy to extend equipment service life and reduce system wear.

This magnetic filtration unit is suited for closed-loop hydronic systems, coolant circuits, and industrial fluid lines where ferrous debris is a known concern. It operates within a working temperature range of 5 degrees C to 50 degrees C, making it appropriate for standard indoor mechanical rooms and process environments. The 1.0-inch NPT connections allow direct in-line installation without adapters in most standard piping configurations. Plumbers, pipefitters, and mechanical contractors typically specify this unit during new system builds or retrofits where fluid cleanliness is a maintenance priority.

Key Features

• 10-inch magnetic filtration unit captures ferrous contaminants in-line
• 1.0-inch NPT port and outlet for standard pipe connections
• Maximum flow rate of 100 liters per minute
• Operating temperature range: 5 degrees C to 50 degrees C
• Compact overall dimensions for tight mechanical spaces

Compatibility

Designed as an in-line magnetic filtration unit for closed-loop hydronic, coolant, and industrial fluid piping systems using 1.0-inch NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local mechanical codes. Isolate and depressurize the system completely before cutting into the line or making any threaded connections. Use thread sealant rated for the fluid type and temperature range of the system. Position the unit to allow clearance for periodic cleaning and service of the magnetic element.
