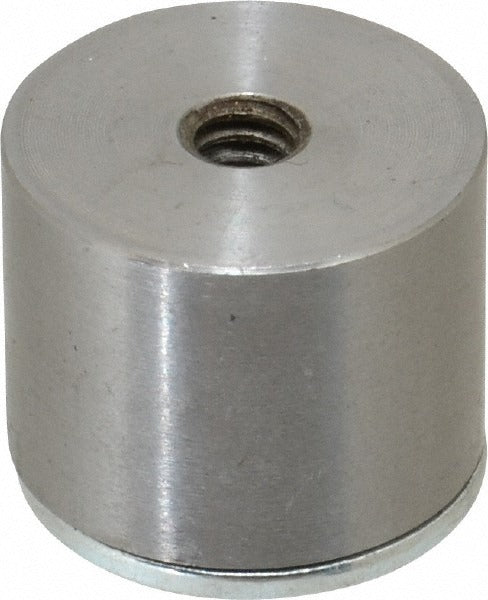

Eclipse M19185/MSC Alnico Pot Magnet 7 Lb 1 Inch

Product Description

The ECLIPSE M19185/MSC is an Alnico pot magnet designed for industrial holding, fixturing, and mounting applications where reliable magnetic pull force and high-temperature resistance are required. Built from Alnico 5 material, this pot magnet delivers an average pull force of 7 pounds and a maximum pull force of 14 pounds from a compact 1-inch diameter body. The integrated 1/4-20 threaded stud allows direct fastening to fixtures, jigs, and assemblies without additional hardware. A maximum operating temperature of 428 degrees F makes this magnet suitable for environments where standard ferrite or rare-earth magnets may lose performance. Licensed trades and industrial maintenance professionals install this type of component in clamping, sensor mounting, and holding setups.

This pot magnet is well suited for light-duty industrial and commercial holding applications. The 1-inch diameter and 3/4-inch height make it appropriate for compact installations where space is limited. The threaded stud design allows fast integration into custom fixtures, tooling plates, and mounting brackets. The Alnico 5 grade material maintains magnetic properties at elevated temperatures, making it a reliable choice for furnace-adjacent, engine bay, or high-cycle manufacturing environments.

Key Features

• Alnico 5 magnet material for stable performance at elevated temperatures up to 428 degrees F
• 7 pounds average pull force and 14 pounds maximum pull force in a 1-inch diameter form factor
• 1/4-20 threaded stud for direct mechanical attachment to fixtures and assemblies
• Compact 3/4-inch height fits tight installation spaces
• Single-piece pot magnet construction concentrates flux for improved holding efficiency

Compatibility

Designed as a general-purpose Alnico pot magnet for industrial holding, clamping, and fixturing applications requiring a 1-inch diameter form factor and 1/4-20 threaded mounting interface.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mechanical assemblers. Ensure the mating surface is clean, flat, and free of debris to achieve rated pull force. De-energize or isolate any adjacent electrical components before working near installed magnets, as strong magnetic fields can affect sensitive instrumentation. Avoid exposing the magnet to impact or shock loads that may cause chipping or demagnetization of the Alnico material.
