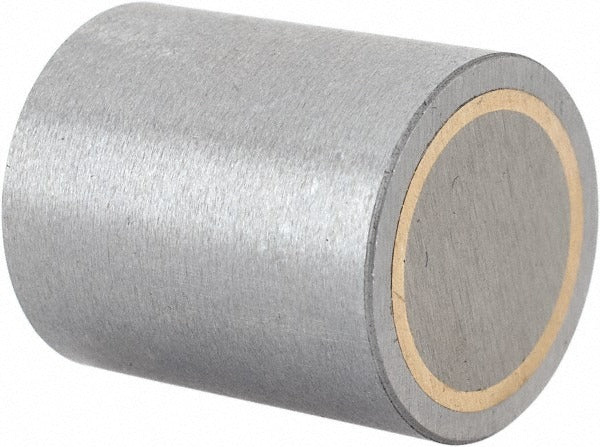

Eclipse M19179/MSC Alnico Pot Magnet 0.625 in 10-24 Thread

Product Description

The ECLIPSE M19179/MSC is an Alnico pot magnet designed for holding, clamping, and fixture applications that require reliable magnetic force in high-temperature environments. Built with an Alnico 5 magnet material grade, it delivers an average pull force of 2.07 pounds and a maximum pull force of 4 pounds. The magnet measures 0.625 inches in diameter and 0.75 inches in height, with a 10-24 threaded stud for secure mechanical attachment. It supports a maximum operating temperature of 428 degrees F, making it suitable for installations near heat sources where standard ferrite magnets would lose performance. Maintenance technicians, industrial service pros, and trade installers commonly work with this part type.

This pot magnet is suited for use in residential and light commercial trade applications where a compact, threaded magnet is needed for panel mounting, door latching, sensor positioning, or holding fixtures in place. The 10-24 thread allows direct integration into tapped assemblies or use with a standard nut for through-mount configurations. Its small footprint and high-temperature rating make it a practical choice in HVAC cabinet work, electrical panel environments, and equipment mounting scenarios where elevated ambient temperatures are a factor.

Key Features

• Alnico 5 magnet material grade for strong magnetic output and high-temperature stability
• Average pull force of 2.07 pounds with a maximum pull force of 4 pounds
• Maximum operating temperature of 428 degrees F, suitable for elevated-heat environments
• 10-24 threaded stud for direct mechanical attachment to tapped components or hardware
• Compact form factor: 0.625 inches diameter by 0.75 inches height
• Sold individually — MOQ of 1 unit

Compatibility

Designed as an OEM-style threaded pot magnet for general trade and industrial holding applications requiring a 0.625-inch diameter, 10-24 thread, Alnico 5 magnet assembly.

Installation Notes

Installation of threaded pot magnets typically requires no special tooling beyond standard hand tools for threading into tapped holes or securing with a mating nut. Ensure the mounting surface is clean and free of debris to achieve rated pull force. De-energize or power down any associated electrical equipment before working in the mounting area. Avoid exposing the magnet to impact or shock loads that could cause chipping or demagnetization.
