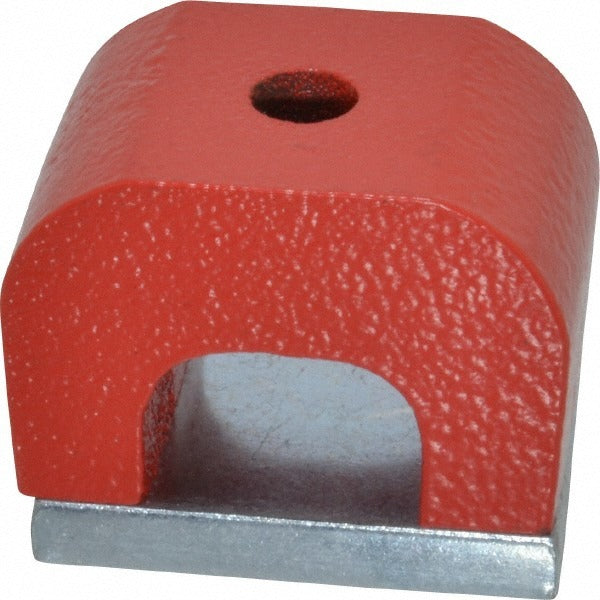

Eclipse M17007/MSC Alnico Power Magnet 13 Lb Pull Force

Product Description

The ECLIPSE M17007/MSC is an Alnico power magnet rated for a maximum pull force of 13 pounds. Built from Alnico alloy, this magnet delivers stable magnetic performance across a wide temperature range, with a maximum operating temperature of 1022 degrees F. The 3/16-inch center hole allows for mounting or fastening in fixed assemblies. At 1-1/8 inches wide, 3/4 inches deep, and 3/4 inches high, it fits compact installations where a reliable, high-temperature-rated permanent magnet is required. Maintenance technicians, industrial equipment specialists, and trade professionals use this type of magnet in sensing, holding, and positioning applications.

The M17007/MSC is suited for industrial and commercial applications requiring a small-profile permanent magnet with consistent pull force. Its Alnico construction makes it well-suited for high-temperature environments where standard ceramic or rare-earth magnets may lose performance. Typical applications include motor assemblies, sensor positioning, magnetic holding fixtures, and similar trade or industrial service scenarios. The 3/16-inch hole diameter supports direct mounting to equipment frames or panels.

Key Features

• Maximum pull force of 13 pounds for reliable holding in compact assemblies
• Alnico alloy construction rated to 1022 degrees F maximum operating temperature
• 3/16-inch center hole for direct mounting or mechanical attachment
• Compact profile: 1-1/8 inches wide, 3/4 inches deep, 3/4 inches high
• Permanent magnet design requires no electrical power to maintain holding force

Compatibility

Designed as an OEM-style replacement or direct-install Alnico power magnet for industrial and commercial equipment assemblies requiring a compact permanent magnet with a 3/16-inch mounting hole.

Installation Notes

Installation of permanent magnets should be performed by qualified technicians familiar with the target equipment. Power down and de-energize any associated equipment before installing or removing the magnet. Avoid exposing the magnet to impact, which can cause demagnetization or structural damage. Keep the magnet away from sensitive electronic components and magnetic media during handling.
