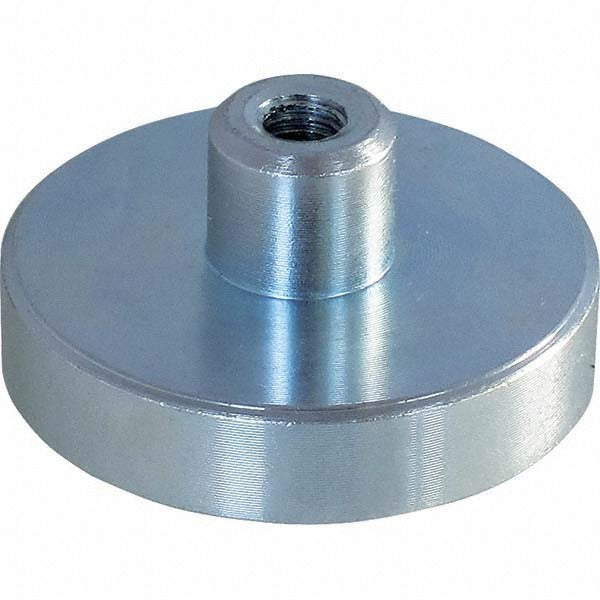

Eclipse E774NEO Neodymium Pot Magnet 20.9 Lb 5/8 Inch

Product Description

The ECLIPSE E774NEO is a neodymium rare earth pot magnet designed for high-strength holding and mounting applications in compact spaces. The pot-style housing concentrates magnetic flux through a single face, delivering a maximum pull force of 9.5 pounds (20.9 kg) from a body measuring just 5/8 inch in diameter and 5/8 inch in height. A factory-installed M4 threaded stud allows direct attachment to hardware, brackets, and fixtures without additional fasteners. The zinc-plated steel shell protects the neodymium core from mechanical damage and light corrosion exposure. Technicians and tradespeople working in HVAC, electrical, and industrial service applications install these magnets where a strong, reliable hold is needed in a small footprint.

This pot magnet suits residential and light commercial installations where permanent or semi-permanent magnetic mounting points are required. Common applications include securing panels, attaching sensor brackets, cable management clips, and tool-holding fixtures. The M4 threaded insert makes it straightforward to integrate into existing hardware assemblies. The magnet is rated for a maximum operating temperature of 176 degrees F (80 degrees C), making it appropriate for service environments with moderate heat exposure but not suitable for high-temperature zones near furnace heat exchangers or flue passages.

Key Features

• Neodymium rare earth core for high pull force in a compact form factor
• Maximum pull force of 9.5 pounds from a 5/8 inch diameter body
• M4 threaded stud for direct fastener attachment without adhesives or drilling
• Zinc-plated steel pot housing concentrates flux and protects the magnet core
• Rated to 176 degrees F (80 degrees C) maximum operating temperature
• Overall thickness of 0.177 inches for low-profile installations

Compatibility

Designed as a general-purpose neodymium pot magnet suitable for mounting, holding, and fixture applications across HVAC, electrical, plumbing, and industrial service trades where an M4 threaded attachment point and compact diameter are required.

Installation Notes

Installation is typically performed by HVAC technicians, electricians, or mechanical tradespeople integrating magnetic mounting points into equipment or structures. Secure the magnet using an M4-compatible fastener torqued to the hardware specification of the receiving assembly. Keep neodymium magnets away from sensitive electronics, magnetic media, and pacemakers during handling. Do not expose this magnet to temperatures exceeding its rated maximum, as heat degrades neodymium magnetic strength permanently.
