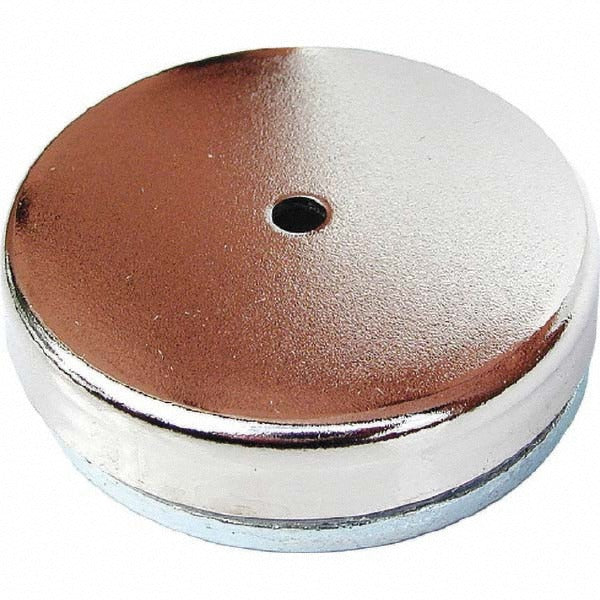

Eclipse E681 Ceramic Pot Magnet 2.03 in 38 Lb Pull

Product Description

The ECLIPSE E681 is a ceramic pot magnet designed for holding, clamping, and fixturing applications across industrial, commercial, and trade environments. The magnet measures 2.03 inches in diameter and 0.31 inches in height, with a centered through-hole of 0.188 inches for mounting with a bolt or fastener. It delivers an average pull force of 38 pounds against a flat steel surface. The steel cup enclosure focuses magnetic flux through the working face, significantly increasing holding strength relative to the ceramic magnet material alone. An epoxy resin coating protects the assembly and provides electrical insulation. The silver finish steel shell resists corrosion in typical indoor service conditions.

The E681 pot magnet is suited for mounting in fixtures, tooling, jigs, and equipment panels where a compact, bolt-down holding magnet is needed. Common applications include workholding setups, machine guarding retention, cabinet door catches, and sensor or switch positioning in light industrial and maintenance environments. The small profile and high pull force relative to its size make it practical where space is limited. It is typically installed by maintenance technicians, tool and die workers, fabricators, and facilities personnel.

Key Features

• 38 lb average pull force against flat steel surface
• 2.03 inch diameter low-profile ceramic pot magnet design
• 0.188 inch center through-hole for bolt or fastener mounting
• Epoxy resin insulation material protects the magnet assembly
• Steel cup concentrates magnetic flux at the working face for maximum holding efficiency
• Silver finish steel shell suitable for general indoor use

Compatibility

Designed as a standard ceramic pot magnet suitable for bolt-mount holding, fixturing, and clamping applications requiring a 2.03 inch diameter form factor with a 0.188 inch center through-hole.

Installation Notes

Installation is performed by threading a fastener through the 0.188 inch center hole into the mounting surface. Ensure the mating steel surface is clean and flat to achieve rated pull force. Keep the ceramic magnet away from sharp impacts during installation, as ceramic magnet material is brittle and can crack if dropped or struck. Pot magnets mounted in electrical equipment enclosures should be secured so the magnet assembly does not contact live conductors.
