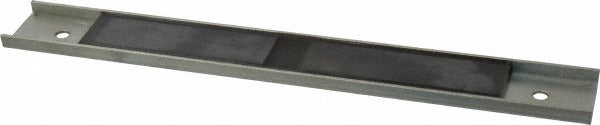

Eclipse E664/MSC Rectangular Channel Ceramic Fixture Magnet

Product Description

The ECLIPSE E664/MSC is a rectangular channel ceramic fixture magnet designed for secure, reliable holding applications in industrial and commercial environments. It delivers a maximum pull force of 15 pounds and an average pull force of 8 pounds, making it suitable for fixture-holding, jigs, clamping setups, and positioning tasks. The magnet measures 12 inches long, 1-1/2 inches wide, and 11/32 inches thick. The ceramic magnet core is housed in a stainless steel channel, providing corrosion resistance and structural support. Installation and maintenance are handled by mechanical, maintenance, or fabrication trade professionals depending on the application.

This fixture magnet is suited for light industrial and commercial holding applications where a low-profile rectangular channel form factor is required. The stainless steel housing makes it appropriate for environments with moisture exposure or where hygiene is a consideration. With a maximum operating temperature of 212 degrees F, it can be used in moderately elevated-temperature settings such as near process equipment or in heated enclosures. The rectangular channel form allows for straightforward surface or flush mounting in tooling fixtures, jigs, and similar assemblies.

Key Features

• Maximum pull force of 15 pounds with an average pull force of 8 pounds
• Ceramic magnet material provides stable magnetic output over a wide temperature range
• Stainless steel housing offers corrosion resistance for demanding environments
• Low-profile rectangular channel design at 11/32 inches thick simplifies integration into tight assemblies
• Rated for operation up to 212 degrees F
• 12-inch length accommodates extended fixture and clamping configurations

Compatibility

Designed as an OEM-style rectangular channel ceramic fixture magnet for use in industrial holding, fixturing, and clamping applications requiring a low-profile stainless steel-housed magnet.

Installation Notes

Installation is typically performed by maintenance technicians or fabricators familiar with magnetic fixture assemblies. Ensure all ferrous surfaces are clean and free of debris before seating the magnet to achieve rated pull force. De-energize or remove any nearby electrical equipment sensitive to magnetic fields before installation. Follow applicable facility safety and tooling standards during mounting and assembly.
