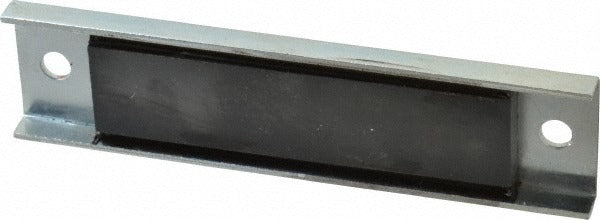

Eclipse E660/MSC Ceramic Channel Magnet 60 Lb Pull Force

Product Description

The ECLIPSE E660/MSC is a rectangular channel ceramic fixture magnet rated for a maximum pull force of 60 pounds (approximately 12 kilograms average). Housed in stainless steel, it measures 5.5 inches long, 2.5 inches wide, and 0.625 inches thick, making it a compact, robust holding magnet suited for fixture, jig, and workholding applications. The ceramic magnet core delivers reliable magnetic force within an enclosed channel body, protecting the magnet material from chipping and mechanical damage. Maintenance technicians, industrial installers, and trade professionals install this type of magnet where a secure, permanent magnetic hold is required without electrical power.

This magnet is designed for use in fixture and tooling applications across industrial, manufacturing, and trade service environments. The stainless steel housing makes it suitable for installations where corrosion resistance is a factor, including wet or washdown-adjacent environments. The rectangular channel form factor allows it to be mounted flush against ferrous surfaces or integrated into custom fixture designs. It is rated for a maximum operating temperature of 212 degrees F, making it appropriate for standard ambient and moderate-heat environments.

Key Features

• Maximum pull force of 60 pounds with an average pull force of approximately 12 kilograms
• Stainless steel housing protects the ceramic magnet core from impact and corrosion
• Rectangular channel fixture style for flush mounting and easy integration into workholding setups
• Rated to 212 degrees F maximum operating temperature for moderate-heat environments
• Compact profile: 5.5 inches long, 2.5 inches wide, 0.625 inches thick
• Weighs 0.6 pounds for easy handling and lightweight fixture integration

Compatibility

Designed as an OEM-style rectangular channel ceramic fixture magnet for general industrial and trade workholding, fixturing, and mounting applications where a ferrous mating surface is present.

Installation Notes

This magnet is typically installed by maintenance technicians or industrial fixture builders using standard fastening hardware through the mounting hole. Before mounting, verify the mating surface is clean, flat, and ferrous to achieve rated pull force. Keep the magnet away from electronic components, sensors, and magnetic media during handling and installation. No electrical power is required; however, always confirm the magnet is fully seated and fasteners are secure before placing the assembly into service.
