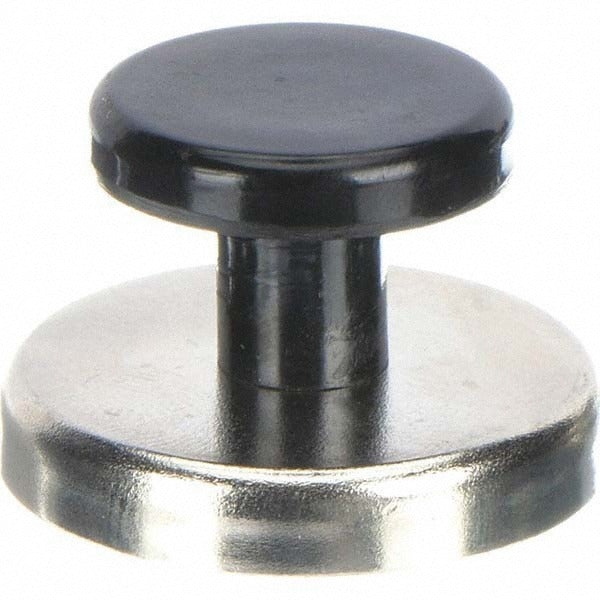

Eclipse E2602 Ceramic Center Mount Fixture Magnet 65 Lb

Product Description

The ECLIPSE E2602 is a ceramic center mount fixture magnet designed for secure magnetic clamping and holding applications in industrial and trade settings. Built from ceramic magnet material, it delivers an average pull force of 65 pounds, making it suitable for moderate-duty fixture and workholding tasks. The E2602 measures 2.625 inches in length and 0.374 inches in width, with a compact profile that fits tight fixture configurations. Machinists, tool and die technicians, and maintenance professionals install this type of magnet in jigs, fixtures, and clamping assemblies where reliable magnetic retention is required.

The E2602 is suited for use in center mount fixture applications found in machine shops, manufacturing environments, and maintenance operations. Its ceramic magnet construction offers consistent pull performance without the degradation concerns associated with some alternative magnet materials. The compact dimensions allow integration into close-tolerance fixture designs where space is limited but reliable holding force is necessary.

Key Features

• Average pull force of 65 pounds for reliable fixture clamping
• Center mount fixture style for straightforward integration into jigs and assemblies
• Ceramic magnet material provides consistent magnetic performance
• Length of 2.625 inches and width of 0.374 inches for compact fitment
• Sold as a single unit for targeted replacement or new fixture builds

Compatibility

Designed as a center mount ceramic fixture magnet suitable for industrial jigs, clamping fixtures, and workholding assemblies requiring a 65 lb average pull force in a compact form factor.

Installation Notes

Installation of fixture magnets is typically performed by machinists or maintenance technicians. Before replacing or installing, ensure the fixture assembly is fully de-energized and any associated machinery is locked out per applicable lockout/tagout procedures. Avoid exposing ceramic magnets to excessive impact or sharp shock loads, as ceramic magnet material is brittle and can fracture. Verify mounting clearances and pull force requirements match the application before final assembly.
