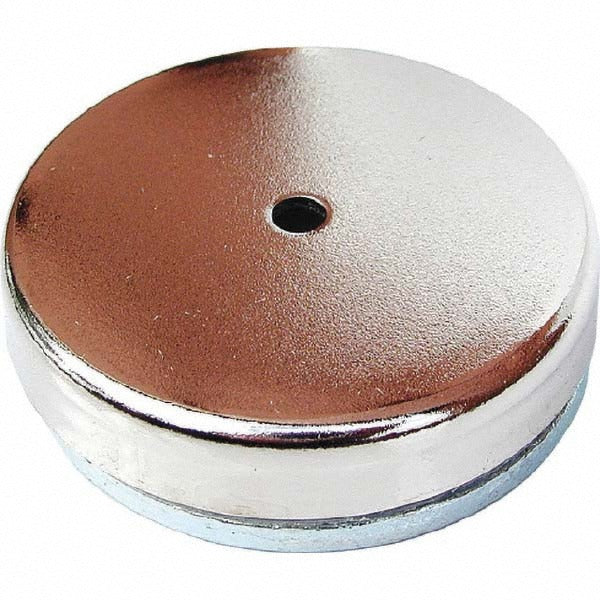

Eclipse E2110 Ceramic Pot Magnet 16 Lb Pull 1.4 Inch

Product Description

The ECLIPSE E2110 is a ceramic pot magnet designed for holding, mounting, and retrieval applications across industrial and trade environments. With an average pull force of 16 pounds and a compact diameter of 1.4 inches, this magnet delivers reliable holding power in a low-profile form factor. The steel cup housing focuses the magnetic field through one face, maximizing surface contact and pull strength. An epoxy resin insulation material protects the ceramic magnet element from chipping and mechanical damage during handling and installation. The E2110 ships as a single unit and is suitable for use by electricians, HVAC technicians, plumbers, and general contractors who need dependable magnetic fastening or retrieval capability on the job.

The E2110 is well suited for light-duty fixture mounting, tool and part retrieval, and magnetic hanging applications in residential and commercial settings. The center hole, with an internal diameter of 0.188 inches, allows for through-bolt or screw mounting directly to a surface. The shallow height of 0.283 inches keeps the overall assembly close to the mounting surface, making it practical in tight installations where clearance is limited. Silver finish integrates cleanly with standard hardware.

Key Features

• 16 lb average pull force in a compact 1.4-inch diameter form factor
• Steel cup housing concentrates magnetic flux for maximum holding strength at the contact face
• Epoxy resin coating protects the ceramic magnet element from mechanical damage
• Center through-hole at 0.188 inches internal diameter enables screw or bolt mounting
• Low-profile height of 0.283 inches suits installations with limited clearance
• Single-unit packaging allows precise quantity ordering with no minimum beyond one piece

Compatibility

Designed as a general-purpose ceramic pot magnet for use in standard through-bolt or screw mounting applications where a 1.4-inch diameter footprint and 16 lb pull force meets the load requirement.

Installation Notes

Install using a fastener sized to the 0.188-inch center hole and appropriate for the mounting substrate material and load conditions. Ensure the mounting surface is clean and flat to achieve rated pull force at the contact face. Ceramic magnets are brittle and can chip or crack if struck or dropped — handle with care during positioning. No special tools or trade licensing are required for standard mounting, but always verify load ratings before use in overhead or safety-critical holding applications.
