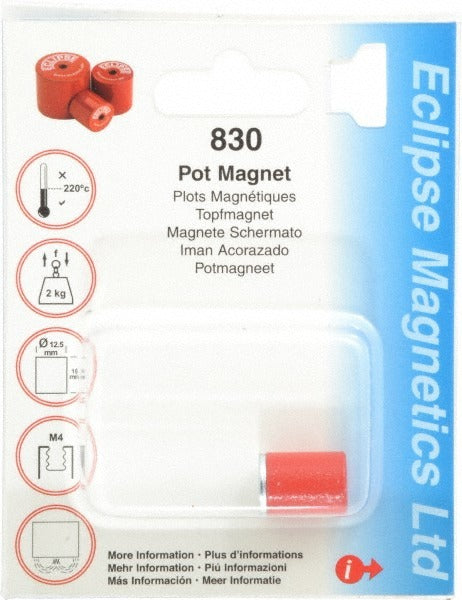

Eclipse 830 Alnico Pot Magnet 2.5 Lb M4 Thread

Product Description

The ECLIPSE 830 is a threaded-mount alnico pot magnet designed for holding, clamping, and fixturing applications in industrial and trade environments. Built from Grade 5 Alnico with a mild steel pot shell, it delivers an average pull force of 2.5 pounds and a maximum pull force of 4.4 pounds from a compact 0.5-inch diameter body. The M4 threaded hole allows direct fastening to fixtures, jigs, or panels without adhesive. With a maximum operating temperature of 428 degrees F, this magnet maintains reliable holding force in elevated-heat environments where weaker magnet materials would degrade.

The ECLIPSE 830 is suited for light-duty holding, sensor positioning, and door or panel latching across HVAC, electrical, and mechanical trade applications. Its small footprint and high-temperature tolerance make it a practical choice in equipment enclosures, control panel assemblies, and field jigs where a compact, threaded magnetic mount is required. Installers working with tight clearances will appreciate the 0.625-inch height and the clean red-coated steel cup finish.

Key Features

• Average pull force of 2.5 pounds with a maximum pull force of 4.4 pounds
• Grade 5 Alnico magnet material rated for up to 428 degrees F continuous operation
• M4 threaded hole mount for direct mechanical fastening without adhesive
• Compact 0.5-inch diameter by 0.625-inch height form factor
• Mild steel pot shell concentrates flux and protects the magnet face
• Red finish for easy visual identification in multi-magnet assemblies

Compatibility

Designed as a direct-mount threaded pot magnet compatible with M4 fastener systems in standard fixturing, sensor mounting, and panel latching applications.

Installation Notes

Installation requires only an M4-compatible threaded stud or screw in the mating fixture. Ensure the mounting surface is clean and flat to achieve rated pull force. Keep the magnet face free of debris and avoid side-loading the threaded connection beyond the pull rating. When installing near sensitive electronics or magnetic media, verify clearance requirements before final mounting.
