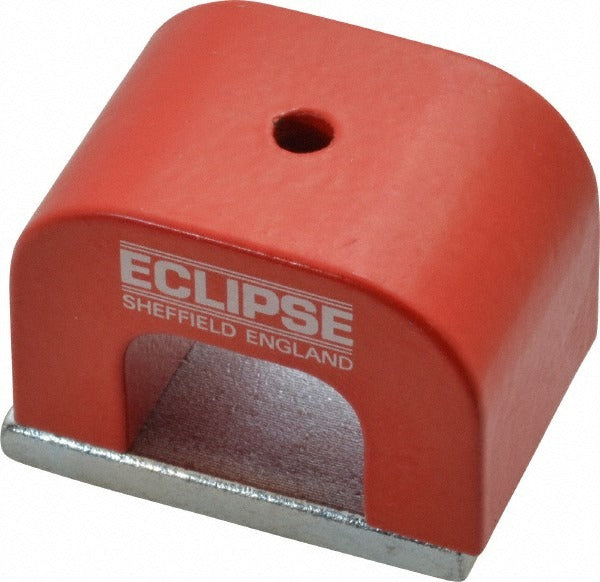

Eclipse 813 Alnico Power Magnet 26 Lb Pull Force

Product Description

The ECLIPSE 813 is a single-hole Alnico power magnet designed for holding, lifting, and fixturing applications in industrial and trade environments. Built from Grade 5 Alnico material, it delivers an average pull force of 26 pounds within a compact form factor measuring 1.1875 inches wide, 1.1875 inches high, and 1.7656 inches deep. The 11 mm pole width concentrates magnetic flux for reliable holding performance. Its rated maximum operating temperature of 550 degrees C makes it suitable for high-heat environments where ceramic or rare-earth magnets may not be appropriate. Licensed trades and industrial technicians working with magnetic mounting, sensor positioning, or fixture assembly commonly specify this magnet type.

The ECLIPSE 813 is used in industrial fixturing, magnetic mounting assemblies, and precision positioning applications across manufacturing, HVAC, electrical, and mechanical trades. The single mounting hole with a 0.1969-inch diameter allows direct mechanical fastening to brackets, fixtures, or housings. Its Alnico 5 grade construction provides a stable, predictable magnetic field suitable for both permanent installation and removable fixture setups in environments with elevated ambient temperatures.

Key Features

• Grade 5 Alnico magnet material for stable, high-temperature magnetic performance
• 26 lb average pull force in a compact 1.1875 x 1.1875 x 1.7656 inch body
• Maximum operating temperature of 550 degrees C, suitable for high-heat service environments
• Single mounting hole at 0.1969 inches diameter for direct mechanical fastening
• 11 mm pole width with 23.02 mm gap width for focused flux density
• Sold individually with no minimum order requirement beyond single unit

Compatibility

Designed as an OEM-style replacement or direct-fit Alnico power magnet for industrial fixturing and magnetic mounting assemblies requiring a Grade 5 Alnico single-hole magnet in the 26 lb pull force class.

Installation Notes

Installation is typically performed by mechanical or electrical technicians using standard hand tools. Power down or de-energize any associated equipment before installing or removing magnet assemblies. Keep Alnico magnets away from strong opposing magnetic fields during handling, as partial demagnetization can result from shock or improper storage. Follow applicable facility safety and lockout/tagout procedures when working in energized or high-temperature environments.
