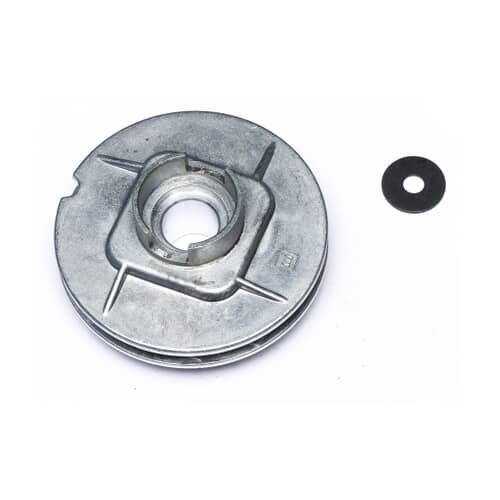

Echo 17720414330 Recoil Drum

Product Description

The ECHO 17720414330 is a recoil drum designed for use in ECHO outdoor power equipment pull-start assemblies. The recoil drum serves as the core component of the starter mechanism, housing and guiding the recoil rope as it winds and unwinds during engine starting. It works in conjunction with the recoil spring and starter pawl to engage the engine flywheel and initiate combustion. Installation or replacement of this part is typically performed by small-engine technicians or experienced service professionals during routine starter system rebuilds.

This recoil drum is applicable to ECHO lawn and garden power equipment that uses a pull-start ignition system. It is suited for residential and light commercial service scenarios where a worn, cracked, or broken recoil drum requires replacement to restore reliable engine starting. Always verify fitment against the equipment model number before ordering.

Key Features

• OEM ECHO part engineered for correct fit within the pull-start assembly
• Houses and guides the recoil rope for consistent starter operation
• Designed for compatibility with ECHO recoil spring and pawl components
• Suitable for use in routine starter system service and rebuild procedures

Compatibility

Designed as an OEM-style replacement recoil drum for ECHO lawn and garden power equipment equipped with a pull-start ignition system. Verify the equipment model number against ECHO parts documentation to confirm fitment before installation.

Installation Notes

Installation should be performed by a qualified small-engine technician. Disconnect the spark plug wire and allow the engine to cool completely before beginning any starter assembly work. Use appropriate hand tools to remove the starter housing and take care when handling the recoil spring, as it is under tension and can cause injury if released suddenly. Refer to the equipment service manual for disassembly and reassembly procedures.

Technical Specifications

• Part Type: Recoil Drum

Standard Information

• Brand: ECHO
• Manufacturer Part Number: 17720414330
